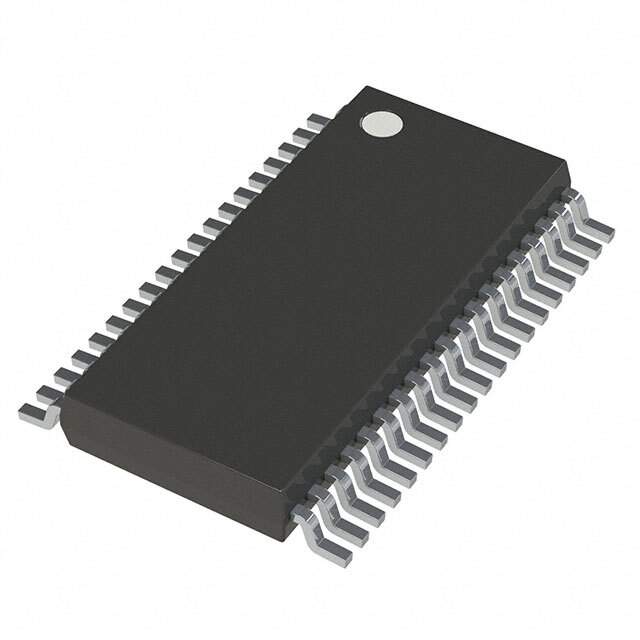

LTC3855IFE#PBF

Part No LTC3855IFE#PBF
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 38V Input 38-Pin TSSOP EP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package SOP
Duty Cycle 95 %
Lead Free Yes
Max Frequency 850 kHz
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Number of Channels 1
Number of Outputs 2
Number of Pins 38
RoHS Compliant
Schedule B 8542390000
Win Source Part Number 1030590-LTC3855IFE#PBF
Categories PMIC - Voltage Regulators - Linear+Switching
Manufacturer Analog Devices Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LTC3855IFE#PBF CAD Model

Description

Analog Devices Inc. LTC3855IFE#PBF - Dual, Multiphase Synchronous Step-Down DC/DC Controller

The LTC3855IFE#PBF is a high-performance, dual, multiphase synchronous step-down DC/DC controller from Analog Devices Inc. that provides a compact and efficient power management solution for a wide range of applications. This device is designed to convert a higher DC input voltage into a lower DC output voltage with high efficiency, which is crucial for powering sensitive electronic circuits in modern electronic systems.

Featuring a wide input voltage range from 4.5V to 38V, the LTC3855IFE#PBF can accommodate a variety of power sources, including 12V and 24V rails commonly found in industrial, automotive, and telecommunications equipment. Its output voltage can be precisely regulated to as low as 0.6V, with a tolerance of ±1% over temperature, which is essential for powering today's low-voltage digital ICs.

One of the key advantages of the LTC3855IFE#PBF is its ability to operate in multiphase mode, which allows the controller to drive multiple synchronous buck converter stages in parallel. This multiphase operation significantly reduces input and output ripple current, which in turn minimizes the size of the input and output capacitors required. Moreover, the phase-locked loop (PLL) feature of the LTC3855IFE#PBF ensures that the phases are evenly spaced, improving the overall performance of the power supply.

The LTC3855IFE#PBF also boasts integrated N-channel MOSFET gate drivers, which provide powerful driving capabilities for external MOSFETs. This results in lower switching losses and better thermal performance, enabling the design of compact and highly efficient power systems. Additionally, the device offers a range of programmable features, including soft-start, frequency synchronization, and selectable operating modes, giving designers the flexibility to optimize the power supply for specific application requirements.

Safety and protection features are also built into the LTC3855IFE#PBF, such as overvoltage, undervoltage, and overcurrent protection, which safeguard the power supply and the load from various fault conditions. The LTC3855IFE#PBF is available in a thermally enhanced 38-lead TSSOP package, which ensures reliable operation even in environments with high ambient temperatures.

With its robust feature set and flexibility, the LTC3855IFE#PBF from Analog Devices Inc. is an ideal choice for engineers looking to develop efficient, reliable, and high-density power solutions for their next-generation electronic systems.
