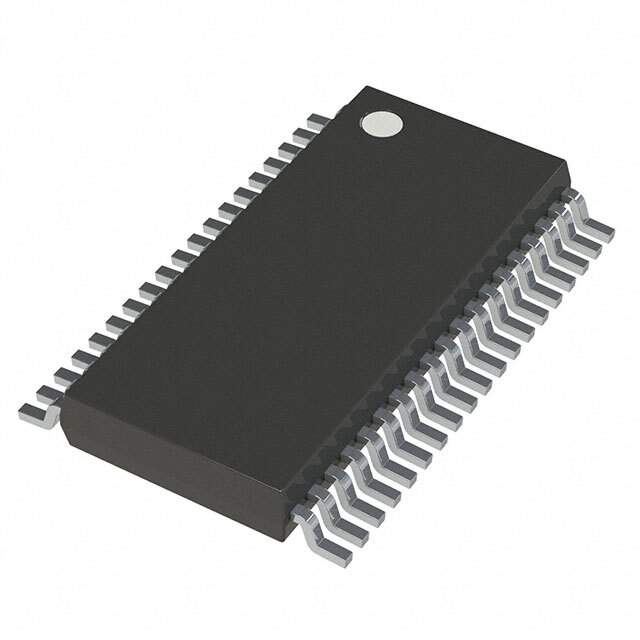

Analog Devices Inc. LTC3865EFE#PBF Dual Output Step-Down DC/DC Controller

The LTC3865EFE#PBF from Analog Devices Inc. is a high-performance dual output synchronous step-down DC/DC controller that is designed to drive all N-channel power MOSFET stages in a phase-lockable fixed frequency architecture. This robust component is housed in a compact 20-lead TSSOP package with an exposed thermal pad for enhanced thermal performance, making it ideal for space-constrained applications that require efficient power management.

With a wide input voltage range of 4V to 38V, the LTC3865EFE#PBF is versatile enough to accommodate a variety of supply voltages, ensuring that it can be used in diverse applications ranging from automotive to industrial and telecommunications systems. The device is capable of producing a fixed output voltage range from 0.6V to 14V, which is adjustable via an external resistor divider, providing flexibility to meet specific design requirements.

The LTC3865EFE#PBF features a precision reference voltage of 0.6V ±1% over a wide temperature range from -40°C to 125°C, ensuring consistent performance under varying operating conditions. The controller also offers differential output voltage sensing for improved regulation accuracy, which is particularly beneficial in scenarios where there is a significant voltage drop due to high current paths.

Additional features of this advanced controller include phase-lockable frequency (75kHz to 850kHz), selectable continuous or discontinuous operation modes, and powerful 1.1Ω on-chip gate drivers. The LTC3865EFE#PBF also provides protection against overcurrent conditions with its foldback current limiting and has an onboard overvoltage protection circuit, which helps to safeguard the system against unexpected supply spikes.

For power system designers who require precise control and high efficiency, the LTC3865EFE#PBF offers a comprehensive solution with its dual output capability, programmable loop compensation, and support for tracking and sequencing of multiple supplies. The device's exceptional thermal and electrical performance ensures reliable operation in a wide range of power supply configurations, making it a go-to choice for engineers seeking to optimize their power management systems.

Overall, the LTC3865EFE#PBF from Analog Devices Inc. is a feature-rich, reliable, and efficient solution for complex power supply designs, delivering the performance and flexibility needed to meet the demands of modern electronic systems.
