Product Overview: LTC3866IUF#TRPBF from Analog Devices Inc.

The LTC3866IUF#TRPBF is a high-performance, dual output synchronous step-down DC/DC controller designed by Analog Devices Inc. This advanced controller is engineered to drive all N-channel power MOSFET stages, which are known for their efficiency and reliability in high-current applications. The LTC3866IUF#TRPBF is particularly well-suited for applications requiring a compact footprint, high efficiency, and precise voltage regulation.

Key Features

• Wide Input Voltage Range: The device supports an input voltage range from 4.5V to 38V, making it versatile for various applications from intermediate bus voltages to battery-powered devices.
• Dual Output Channels: It can control two separate output voltages, allowing for simultaneous regulation of different voltage levels, which is essential for powering complex systems with multiple supply requirements.
• Adjustable Frequency: The operating frequency is adjustable from 50kHz to 900kHz, which enables optimization for efficiency or component size depending on the application needs. Additionally, it can be synchronized to an external clock.
• Current Mode Operation: The device offers excellent transient response and cycle-by-cycle current limiting, enhancing the reliability and performance of the power supply.
• Robust Temperature Performance: The LTC3866IUF#TRPBF operates over a temperature range of -40°C to 125°C, ensuring stability and functionality under extreme conditions.

Applications

The LTC3866IUF#TRPBF is ideal for a variety of applications, including:

• Datacom and Telecom Systems
• Automotive Power Systems
• Industrial Equipment
• High-Density Distributed Power Systems

Package and Quality

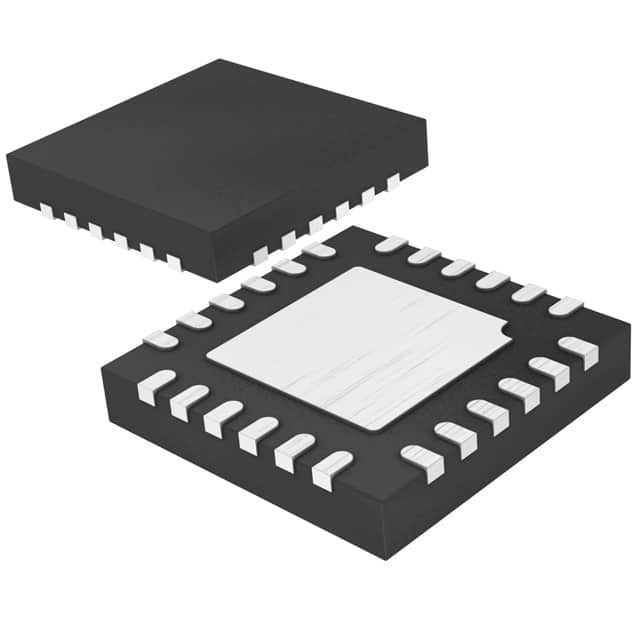

It comes in a compact 24-lead QFN package, which is designed to minimize the solution footprint while providing robust thermal performance. The LTC3866IUF#TRPBF is part of Analog Devices' high-reliability product lineup, ensuring consistent performance and quality for critical applications.

With its advanced features and flexible design, the LTC3866IUF#TRPBF from Analog Devices Inc. is a top-tier solution for any designer looking to create a high-efficiency, reliable power management system.
