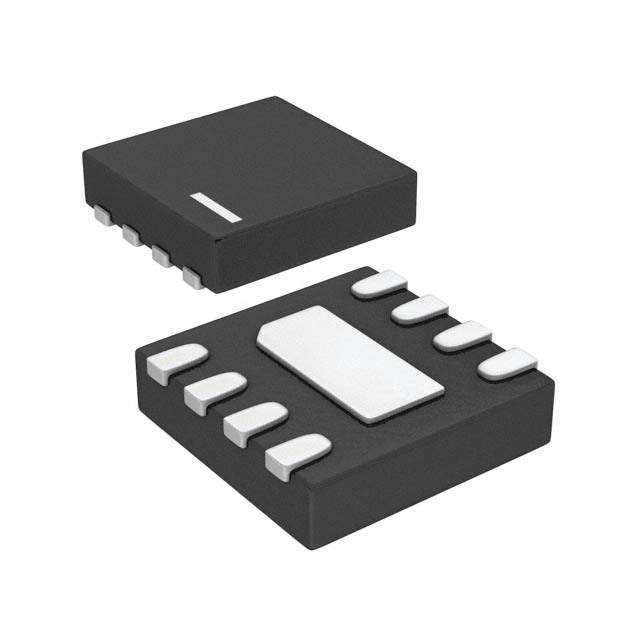

Product Overview: LTC6256IKC#TRMPBF by Analog Devices Inc.

The LTC6256IKC#TRMPBF is a high-performance, low-power operational amplifier from Analog Devices Inc., designed to meet a broad range of application requirements. This op-amp is part of a family of single/dual/quad operational amplifiers that utilize the company's advanced silicon technology to provide excellent speed, precision, and minimal power consumption.

This particular model is notable for its low offset voltage, low input bias currents, and high gain bandwidth product, making it an ideal choice for high-resolution data acquisition systems, portable medical devices, and other precision instrumentation. The LTC6256IKC#TRMPBF operates with a single or dual supply voltage ranging from 1.8V to 5.25V, which allows for flexible design options in battery-powered and space-constrained applications.

Key Features:

• High Gain Bandwidth Product: With a 6.5MHz gain bandwidth product, this op-amp can handle a wide range of frequencies, making it suitable for filtering, amplification, and signal conditioning applications.
• Low Noise: The device boasts a low input voltage noise density of 1.8nV/√Hz at 1kHz, which is critical for applications requiring low noise performance.
• Power Efficiency: The LTC6256IKC#TRMPBF has a quiescent current of just 65µA per amplifier, which is beneficial for power-sensitive applications.
• Stability: It offers rail-to-rail input and output, providing stable operation throughout the entire input and output voltage ranges.
• Temperature Range: The device is specified for operation across the extended industrial temperature range of -40°C to 125°C, ensuring reliability in harsh environments.
• Packaging: Available in a compact, 6-lead SC70 package, it is suitable for space-saving designs without compromising performance.

Applications:

• Portable Medical Devices
• Data Conversion Systems
• Signal Conditioning
• Active Filtering
• Battery-Powered Instruments
• Sensor Interfaces

The LTC6256IKC#TRMPBF is a testament to Analog Devices Inc.'s commitment to providing advanced electronic components that enhance the performance and efficiency of modern electronic systems. With its combination of low power, high precision, and robust design, this operational amplifier is a versatile solution for a wide array of applications.
