Analog Devices Inc. LTC7124IUDD#PBF Dual Output Step-Down Regulator

The LTC7124IUDD#PBF from Analog Devices Inc. is a high-performance, dual output synchronous step-down DC/DC regulator that is designed to meet the needs of modern electronic devices requiring efficient power management. This component is part of a family of fast-switching regulators that offer a compact, efficient, and reliable solution for applications requiring dual outputs with high current capabilities.

With its wide input voltage range of 3.1V to 17V, the LTC7124IUDD#PBF can accommodate a variety of power sources, including single-cell Li-Ion batteries, multi-cell alkaline batteries, and regulated 5V and 12V power rails. The dual outputs are independently adjustable from 0.6V to 99% of V_IN, providing the flexibility to power a wide array of ICs and devices with different voltage requirements.

The LTC7124IUDD#PBF features a high switching frequency that can be programmed from 500kHz to 2MHz or synchronized to an external clock, allowing for a smaller overall solution size due to the use of compact external components. The high-frequency operation also enables fast transient response and excellent loop stability.

This regulator incorporates internal top and bottom high-efficiency power switches and can deliver up to 3.5A of continuous output current per channel at voltages as low as 0.6V. The peak efficiency is optimized with selectable Burst Mode® operation, which reduces quiescent current to just 8μA per channel during light loads, thus extending battery life in portable applications.

The LTC7124IUDD#PBF is designed with safety and reliability in mind, featuring overvoltage, overcurrent, and over-temperature protection. The device also has a power good status flag for each channel, which provides real-time feedback on the output voltage integrity, ensuring reliable operation of the end application.

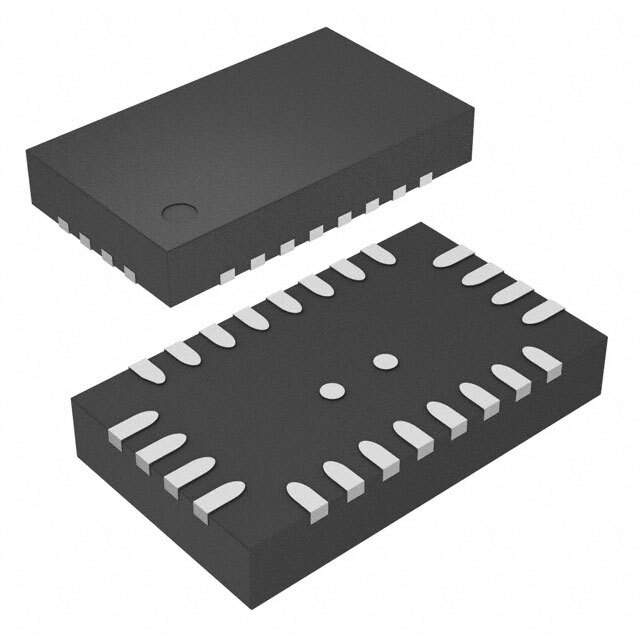

This regulator comes in a compact 3mm x 4mm QFN package, making it an ideal choice for space-constrained applications such as handheld devices, portable medical equipment, and industrial control systems. With its robust feature set and high level of integration, the LTC7124IUDD#PBF is a versatile power solution that simplifies design and enhances system performance.
