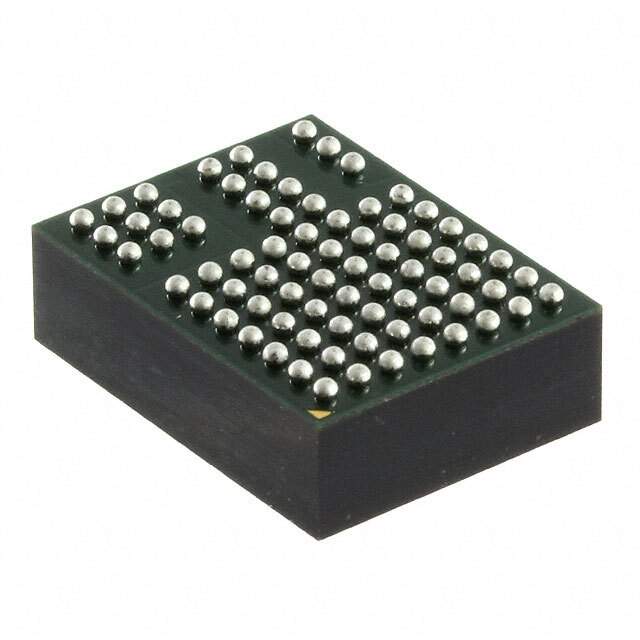

The LTM8033MPY from Analog Devices Inc. is a highly efficient, µModule (micromodule) regulator designed to simplify the power supply design process for a wide range of applications. This compact, integrated solution combines a step-down DC/DC converter with the inductor, control circuitry, and passive components all housed within a robust surface-mount package.

Key Features

• Wide Input Voltage Range: The LTM8033MPY operates from an input voltage range of 3.6V to 36V, making it suitable for a variety of supply voltages.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 24V, providing flexibility for different power requirements.
• High Efficiency: With up to 95% conversion efficiency, this micromodule regulator ensures minimal heat generation and energy loss.
• Output Current: It can deliver up to 3A of continuous output current, catering to a broad spectrum of power demands.
• Thermal Performance: The LTM8033MPY is designed for optimal thermal performance, featuring a -40°C to 125°C operating junction temperature range, which is ideal for harsh environments.
• Integrated Components: The inclusion of internal inductor, MOSFETs, a DC/DC controller, and compensation in a single package simplifies the design and reduces the board space required.

Applications

The versatility of the LTM8033MPY makes it an excellent choice for a host of applications, including but not limited to:

• Telecommunications infrastructure
• Industrial equipment
• Automotive systems
• Medical devices
• Datacom and telecom systems

Design Advantages

The LTM8033MPY offers several design advantages. Its compact footprint allows for use in space-constrained applications. The integrated design reduces the need for external components, which can shorten design time, simplify board layout, and enhance reliability. Additionally, with its encapsulated construction, the LTM8033MPY provides improved thermal performance and moisture resistance, making it suitable for use in harsh environmental conditions.

Conclusion

Analog Devices Inc.'s LTM8033MPY is a powerful, versatile micromodule regulator that delivers high efficiency, adjustable output, and robust performance in a compact package. It is an ideal solution for designers looking to streamline their power supply designs across a multitude of demanding applications.
