Analog Devices Inc. LTM8071IY - µModule Regulator

The LTM8071IY is a high-performance, easy-to-use µModule (micromodule) regulator from Analog Devices Inc., designed to deliver efficient power management solutions for a wide range of applications. This compact, complete system-in-package integrates the inductor, power switches, DC/DC controller, and other supporting components within a single package, simplifying the design process and reducing the time-to-market for engineers.

Key Features:

• Input Voltage Range: The device supports a broad input voltage range of 3.4V to 40V, making it versatile for various applications, from automotive to industrial systems.
• Output Voltage Range: It provides an adjustable output voltage from 0.8V to 8V, catering to the needs of low-voltage electronics.
• High Efficiency: The LTM8071IY is designed for high efficiency, which helps in reducing power loss and heat generation, thereby extending the life of the product.
• Silent Switcher® Architecture: Incorporates ADI's proprietary Silent Switcher architecture to minimize EMI/EMC emissions, a critical feature for noise-sensitive applications.

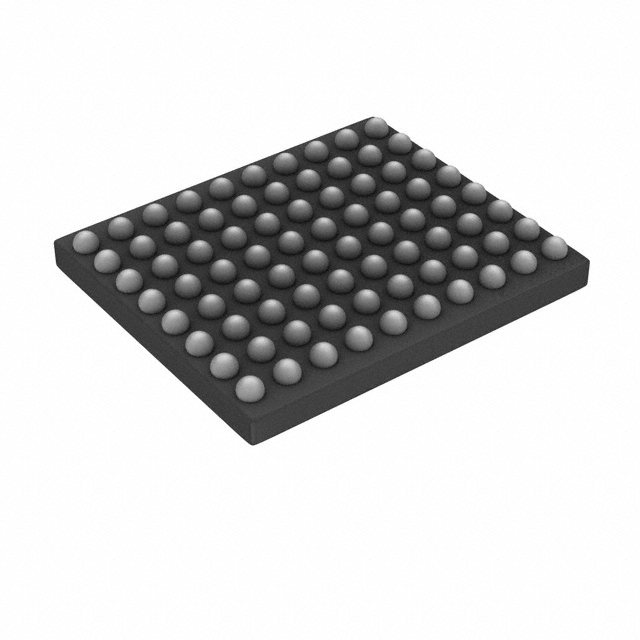

• Compact Footprint: The LTM8071IY comes in a compact, surface-mount LGA package (9mm x 11.25mm x 4.92mm) that saves board space and is suitable for space-constrained applications.
• Thermal Performance: Excellent thermal performance is assured by the package design, which allows for effective heat dissipation.
• Protection Features: It includes overvoltage, overcurrent, and overtemperature protection for improved reliability and durability.

Applications:

The versatility of the LTM8071IY makes it an ideal choice for a wide array of applications, including but not limited to:

• Telecommunications
• Industrial Control and Automation
• Automotive Systems
• Datacom/Telecom Systems
• Medical Devices

With its integrated approach, the LTM8071IY µModule regulator from Analog Devices Inc. offers a powerful, efficient, and compact solution for power management challenges, enabling designers to optimize their systems for performance and space without sacrificing quality or reliability.
