The MAX17263LETD+ is a high-precision, low-power fuel-gauge IC from Analog Devices Inc., designed to provide comprehensive monitoring and management for single-cell Li-ion batteries in a wide range of portable devices. This advanced fuel gauge integrates a sophisticated algorithm ModelGauge™ m5 EZ to deliver accurate state-of-charge (SoC) readings without the need for battery characterization.

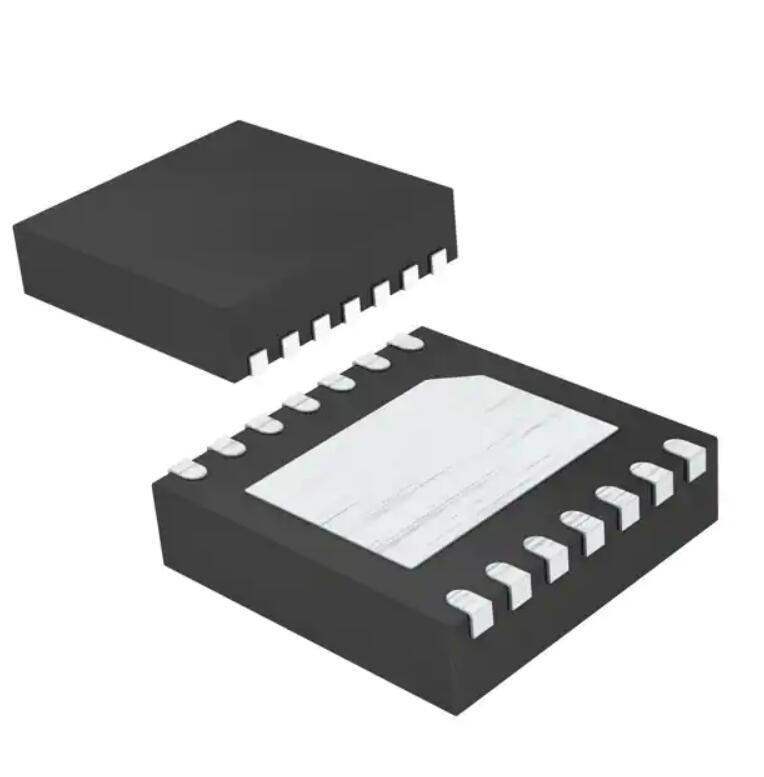

With its compact form factor, the MAX17263LETD+ is available in a tiny 3mm x 3mm, 10-pin Thin DFN (TDFN) package, making it suitable for space-constrained applications. It operates over a wide voltage range of 2.7V to 4.5V, allowing for versatile use in various battery configurations and ensuring compatibility with most single-cell lithium battery chemistries.

One of the key features of the MAX17263LETD+ is its low quiescent current, which is critical for extending battery life in portable devices. The device also includes a programmable alert output that can notify the host when certain conditions, such as a low battery or temperature thresholds, are met.

The ModelGauge m5 EZ algorithm eliminates the need for battery characterization for most applications, while still providing high accuracy by combining the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge. Additionally, the MAX17263LETD+ includes a temperature-compensated measurement system to provide further accuracy across a wide temperature range.

For designers and engineers, the MAX17263LETD+ simplifies the implementation of battery gauges in portable devices. It comes with an I2C interface for communication with the host system, allowing for easy integration into existing designs. The device also supports the quick insertion of batteries with its robust initial SoC estimates and provides diagnostics to ensure reliable operation.

Overall, the MAX17263LETD+ is an excellent choice for battery management in portable consumer electronics, medical devices, and any application where battery life and accurate SoC readings are crucial. Its combination of advanced features, ease of use, and compact package makes it a versatile and reliable solution for modern battery-powered applications.
