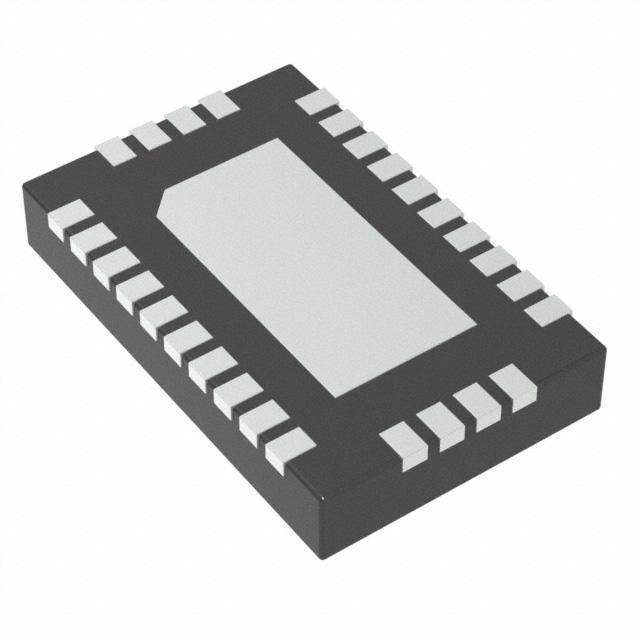

The MAX22513ATI+ is a sophisticated integrated transceiver module designed by Analog Devices Inc., a leader in the semiconductor industry. This robust component is tailored for industrial applications that demand high reliability and performance in challenging environments. The MAX22513ATI+ is part of a family of dual-driver ICs that are engineered to provide both isolated power and isolated data channels in a single package.

Key Features

• Integrated Power and Data Isolation: The MAX22513ATI+ offers a combination of isolated power and data in one compact package, simplifying design and reducing board space.
• High Electromagnetic Compatibility (EMC): Designed with EMC in mind, this transceiver ensures reliable operation in electrically noisy environments, making it ideal for industrial automation.
• Extended Temperature Range: It operates efficiently across a wide temperature range, from -40°C to +125°C, ensuring performance in extreme conditions.
• Robust Protection Features: The device includes overcurrent protection, thermal shutdown, and under-voltage lockout, safeguarding the transceiver against various electrical hazards.
• High Integration: The MAX22513ATI+ integrates multiple functions, reducing the need for additional components and simplifying the overall design.

Applications

The versatility of the MAX22513ATI+ makes it suitable for a wide range of industrial applications, including but not limited to:

• Programmable Logic Controllers (PLCs)
• Industrial Control Systems
• Sensor Interfaces
• Networked Automation
• Motor Control Centers

Technical Specifications

In conclusion, the MAX22513ATI+ from Analog Devices Inc. is an exceptional choice for designers looking to enhance their industrial systems with a reliable, high-performing integrated transceiver that offers both power and data isolation in a singular, efficient package.
