The REF196GRUZ from Analog Devices Inc. is a precision voltage reference that offers a stable and accurate reference voltage for high-performance analog-to-digital and digital-to-analog converters, as well as other precision circuit applications. This component is part of Analog Devices' family of low-dropout, micropower voltage references which provide a fixed output voltage with minimal external components required.

Key Features

• Output Voltage: The REF196GRUZ provides a fixed output voltage of 5V, which is ideal for many standard 5V logic circuits and can be used in a wide range of applications.
• Low Dropout Voltage: This voltage reference features a low dropout voltage, making it suitable for battery-operated devices where power efficiency is critical.
• High Accuracy: With an initial accuracy of ±0.15%, the REF196GRUZ ensures precise voltage regulation, contributing to the overall accuracy of the system it is integrated into.
• Temperature Coefficient: It has an excellent temperature coefficient, typically 25 ppm/°C, which means its output voltage remains stable across a wide temperature range.
• Low Power Consumption: The device is designed for micropower operations, consuming minimal power and helping to extend the battery life of portable devices.

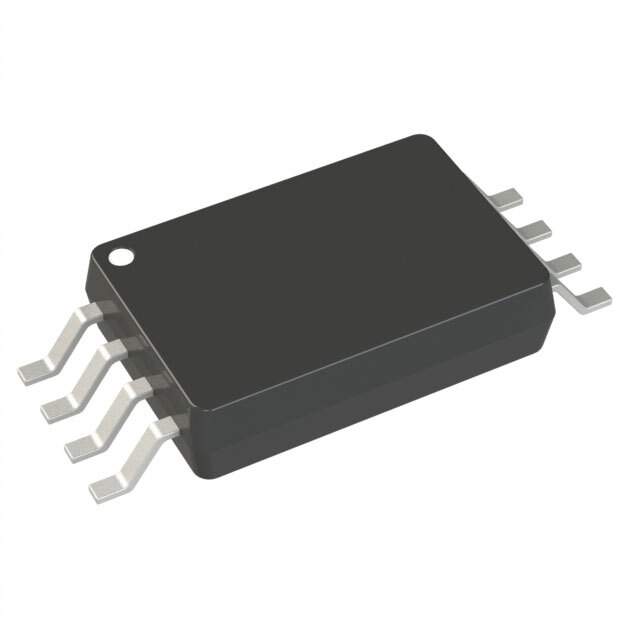

• Package: The REF196GRUZ is available in a compact TSSOP package, which is suitable for space-constrained applications.

Applications

The REF196GRUZ is versatile and can be used in a variety of applications, including:

• Data acquisition systems
• Portable and battery-powered equipment
• Industrial control systems
• Precision instrumentation
• Analog and digital converters

Product Specifications

In summary, the REF196GRUZ from Analog Devices Inc. stands out for its precision, reliability, and efficiency, making it an excellent choice for demanding applications where a stable reference voltage is crucial.
