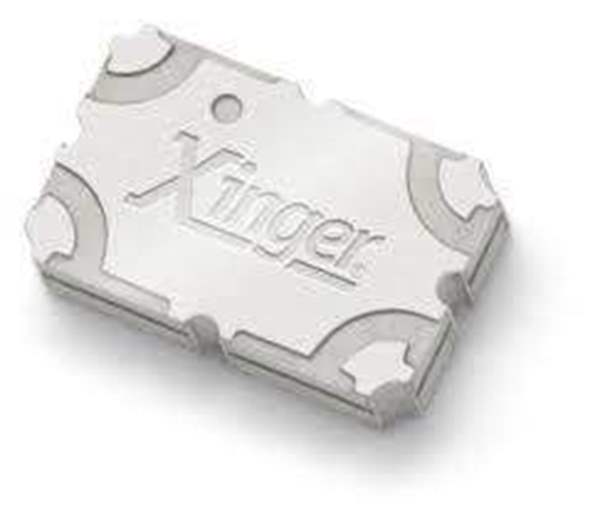

X3C09F1-03SAnaren
Same model may have multiple batches, images only for reference.

X3C09F1-03S

Part No X3C09F1-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description RF DIR COUPLER 800MHZ-1GHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000533-X3C09F1-03S
Manufacturer Anaren
Category RF and Wireless -RF Directional Coupler
Series Xinger III®
Package Tape & Reel (TR)
Applications General Purpose
Package / Case 4-SMD, No Lead
Product Status Active
Product Status X3C09F1
Ultra Librarian 3D Model Ultra Librarian X3C09F1-03S CAD Model

Description

The RF Directional Coupler is part of the Xinger III® series and is suitable for general-purpose applications from Anaren.

  • Packaging: Tape & Reel
  • Package/Case: 4-SMD, No Lead
  • Product Status: Active
  • Series: Xinger III®
