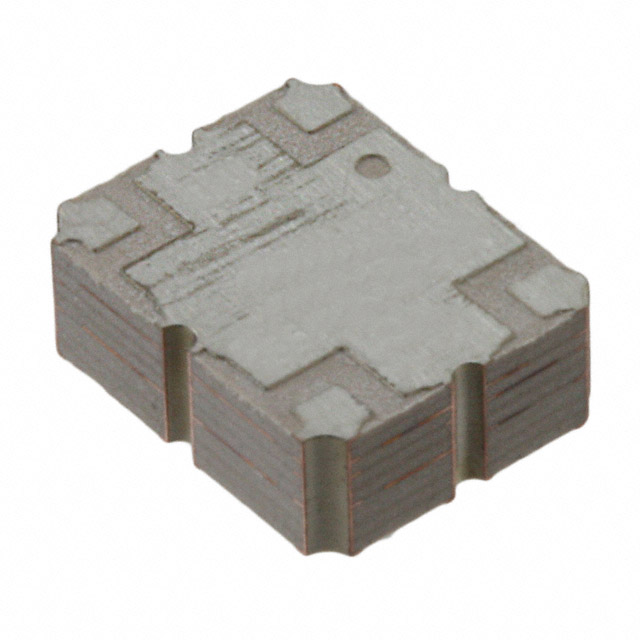

X3C09P2-30S Anaren
Same model may have multiple batches, images only for reference.

X3C09P2-30S

Part No X3C09P2-30S
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 800-1000MHZ 30DB
Datasheet
X3C09P2-30S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Quantity per package 2k pcs
Supply and Demand Status Balance
Popularity Medium
Win Source Part Number 1118117-X3C09P2-30S
Case / Package 4-SMD
Return Loss 24.9dB
Maximum Power Dissipation 225W
Insertion Loss 0.1dB
Applications AMPS, CDMA, WCDMA
Coupling Factor 30.2dB
Frequency 800MHz to 1GHz
Coupler Type Standard
Status Active
Packaging Reel - TR
Manufacturer Anaren
Categories RF/IF and RFID
Ultra Librarian 3D Model Ultra Librarian X3C09P2-30S CAD Model

Description

The Anaren 1118117-X3C09P2-30S is a high-performance RF directional coupler designed for use in AMPS, CDMA, and WCDMA applications.

  • Manufacturer: Anaren
  • Product Name: 1118117-X3C09P2-30S
  • Applications: AMPS, CDMA, and WCDMA
  • Frequency Range: 800MHz to 1GHz
  • Coupling Factor: 30.2dB
  • Insertion Loss: 0.1dB
  • Return Loss: 24.9dB
  • Package: 4-SMD
  • Power Dissipation: 225W
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Packaging: Reel - TR
  • Quantity per Package: 2k pcs
