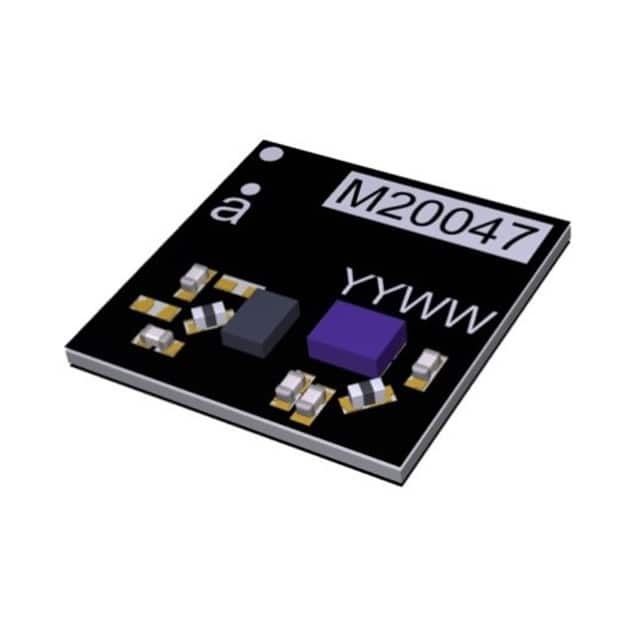

Same model may have multiple batches, images only for reference.
M20047-1
Same model may have multiple batches, images only for reference.

M20047-1

Part No M20047-1
Manufacturer Antenova
Catalog RF Antennas
Description RF ANT 1.559GHZ-1.606GHZ SMD / 1.584GHz General Purpose Integrated, Trace RF Antenna 1.559GHz ~ 1.609GHz 3dBi Solder Surface Mount
Datasheet
M20047-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Antenova
Series RADIONOVA®
Package Tape & Reel
Product Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.584GHz
Frequency Range 1.559GHz ~ 1.609GHz
Antenna Type Integrated, Trace
Number of Bands 1
VSWR 1.4
Return Loss -12dB
Gain 3dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Applications General Purpose
Base Product Number M20047
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Win Source Part Number 924715-M20047-1
Ultra Librarian 3D Model Ultra Librarian M20047-1 CAD Model

Description

The 924715-M20047-1 is a surface mount RF antenna from the RADIONOVA™ series by Antenova.

  • Application: general-purpose
  • Frequency Range: 1.559GHz to 1.609GHz
  • Return Loss: -12dB
  • VSWR: 1.4
  • Gain: 3dBi
  • Height: 0.043" (1.10mm)
  • Package: tape & reel
  • Standard Package Quantity: 1,000 pcs
  • Product Status: active
