Same model may have multiple batches, images only for reference.

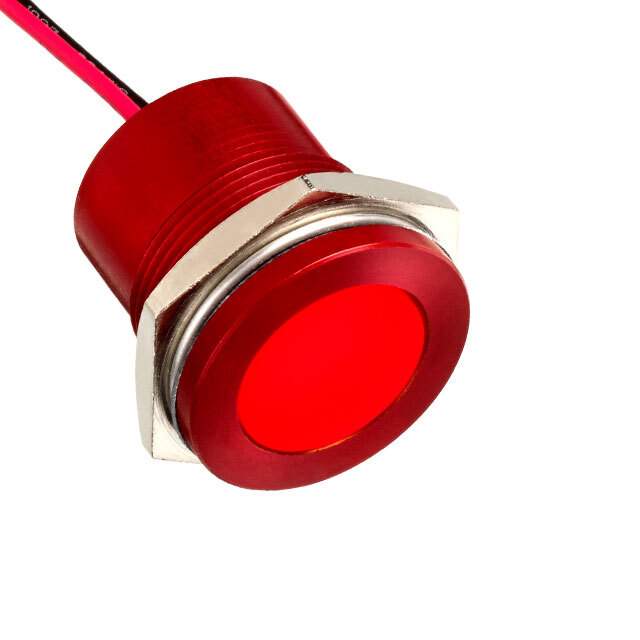

Q22F5ARXXSR24AE Real Image
Same model may have multiple batches, images only for reference.

Q22F5ARXXSR24AE

Part No Q22F5ARXXSR24AE
Manufacturer Apem Inc.
Catalog Panel Indicators, Pilot Lights
Description INDICATOR 24V 22MM FLUSH RED / LED Panel Indicator Red Diffused 24V 40mA Wire Leads - 7.87" (200.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr APEM Inc.
Series Q22
Package Bag
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings AC/DC
Voltage 24V
Current 40mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.87" (22.10mm)
Lens Size 18.00mm Dia
Lens Style Round with Flat Top
Millicandela Rating 8000mcd
Termination Style Wire Leads - 7.87" (200.00mm)
Ingress Protection IP67
Base Product Number Q22F5ARXXSR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 679-3766
Standard Package 25
Win Source Part Number 1117933-Q22F5ARXXSR24AE
Ultra Librarian 3D Model Ultra Librarian Q22F5ARXXSR24AE CAD Model

Description

The Q22F5ARXXSR24AE is an LED panel indicator from APEM Inc.

  • Millicandela Rating: 8000mcd
  • Voltage Rating: 24V
  • Lens Color: Red
  • Lens Transparency: Diffused
  • Panel Cutout Dimensions: 0.87" (22.10mm)
  • Lens Size: 18.00mm Dia.
  • Termination Style: Wire Leads
  • Lead Length: 7.87" (200.00mm)
  • Rated For: AC/DC
  • Ingress Protection: IP67
  • Standard Package: 25
  • Packaging: Bag
  • Lamp Color: Red
  • Current Rating: 40mA
  • Lens Style: Round with Flat Top
  • Panel Cutout Shape: Round
  • REACH: Unaffected
  • ECCN: EAR99
