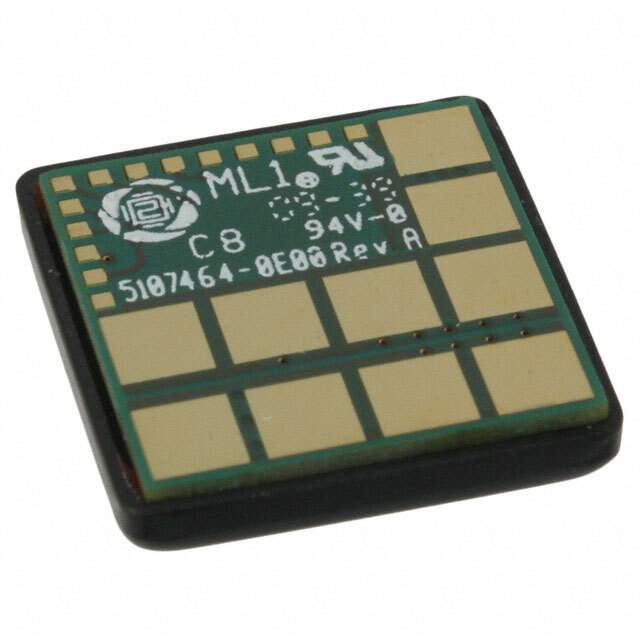

LGA20C-01SADJJ Real Image LGA20C-01SADJJ Real Image1 LGA20C-01SADJJ Real Image2
Same model may have multiple batches, images only for reference.
LGA20C-01SADJJ Real Image LGA20C-01SADJJ Real Image1 LGA20C-01SADJJ Real Image2
LGA20C-01SADJJ Real Image LGA20C-01SADJJ Real Image1 LGA20C-01SADJJ Real Image2
Same model may have multiple batches, images only for reference.

LGA20C-01SADJJ

Part No LGA20C-01SADJJ
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.59-5.1V 100W / Non-Isolated PoL Module DC DC Converter 1 Output 0.59 ~ 5.1V 20A 4.5V - 14V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Artesyn Embedded Power
Series LGAC (100W)
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.59 ~ 5.1V
Current - Output (Max) 20A
Power (Watts) 100 W
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting SMD (SMT)
Package / Case 24-PowerBLGA Module
Dimension 0.65" L x 0.65" W x 0.21" H (16.5mm x 16.5mm x 5.3mm)
Supplier Device Package 24-LGA (16.51x16.51)
Control Features Enable, Active High
Base Product Number LGA20C
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 454-1288-2,LGA20C01SADJJ,454-1288-6,454-1288-1,454-1288,454-1288-ND
Standard Package 450
Win Source Part Number 1069533-LGA20C-01SADJJ
Ultra Librarian 3D Model Ultra Librarian LGA20C-01SADJJ CAD Model

Description

The LGA20C-01SADJJ is a non-isolated PoL module power supply manufactured by Artesyn Embedded Power.

  • Package: 450-piece tape and reel
  • Package/Case: 24-PowerBLGA module
  • Features: remote on/off, overvoltage protection (OVP), short circuit protection (SCP), and undervoltage lockout (UVLO)
  • Application: ITE (Commercial)
  • Power Output: 100W
  • Mounting Type: SMD (SMT)
  • Control Feature: enable, active high
  • Output: single
  • Maximum Current Output: 20A
  • Voltage Output: 0.59~5.1V
  • Operating Temperature: -40°C to 85°C
