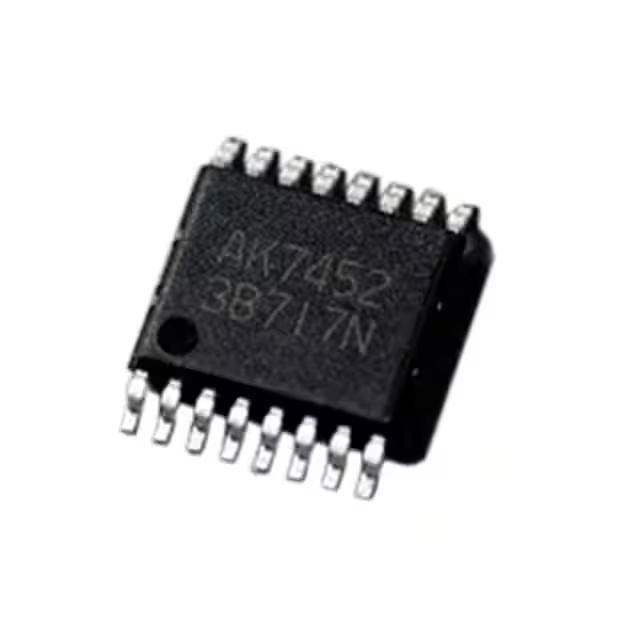

AK7452 Asahi Kasei Microdevices
Same model may have multiple batches, images only for reference.

AK7452

Part No AK7452
Manufacturer Asahi Kasei Microsystems
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE 360DEG SOLDER
Datasheet
AK7452 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1168822-AK7452
Manufacturer Asahi Kasei Microdevices
Category Sensors, Transducers -Position Sensors -Angle, Linear Position Measuring
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
For Measuring Angle
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C
Voltage - Supply 3V ~ 5.5V
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Output Analog Voltage
Actuator Type External Magnet, Not Included
Linearity ±0.5°
Ultra Librarian 3D Model Ultra Librarian AK7452 CAD Model

Description

The position sensor AK4382 from Asahi Kasei Microdevices is designed for measuring angles.

  • Application: Measuring angles
  • Voltage Supply: 3V to 5.5V
  • Operating Temperature: -40°C to 125°C
  • Output: Analog Voltage
  • Actuator: Requires external magnet (not included)
  • Package: 16-TSSOP
  • Mounting Type: Surface Mount
  • Product Status: Obsolete
