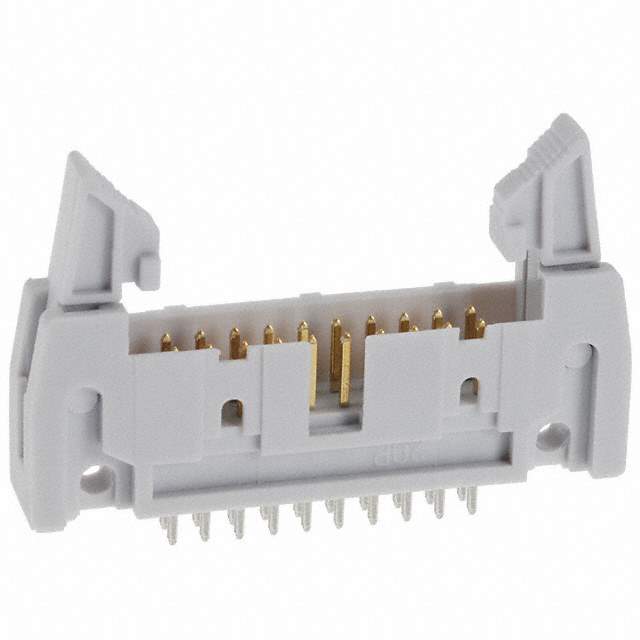

AWH20G-0222-T-R

Get a Quote

Part No	AWH20G-0222-T-R
Manufacturer	Assmann WSW Components
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Assmann WSW Components
Package	Tray
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.669" (17.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT) , Glass Filled
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Current Rating (Amps)	3A
Standard Package	108
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351499-AWH20G-0222-T-R
Ultra Librarian 3D Model	Ultra Librarian AWH20G-0222-T-R CAD Model

Alternative Products

Description

The Assmann WSW Components 1351499-AWH20G-0222-T-R header connector is a male pin connector with 20 positions and a pitch of 0.100" (2.54mm).

Features: Keying Slot, Shrouded (4 Wall), Latch Lock/Eject Hooks, Short
Fastening Type: Flash
Contact Finish: Flash
Current Rating (Amps): 3A
Mounting Type: Through Hole
Standard Package: 108
Material Flammability Rating: UL94 V-0
Operating Temperature: -40°C to 105°C
