Same model may have multiple batches, images only for reference.

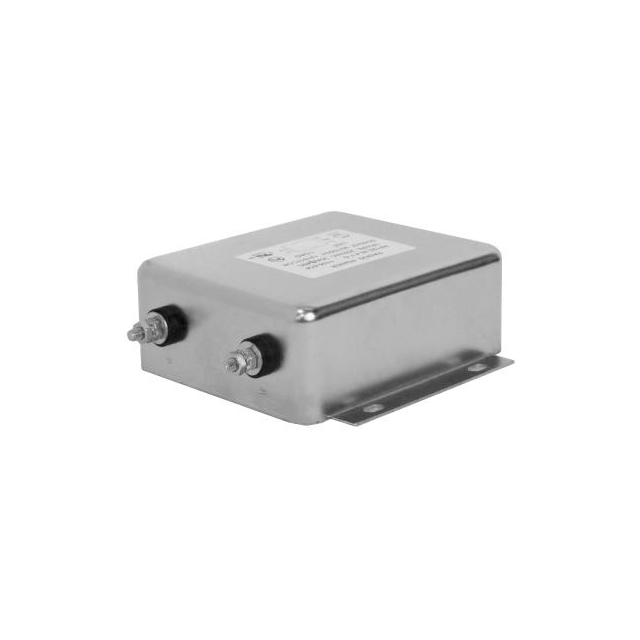

RP120-20-4.7-QD Real Image
Same model may have multiple batches, images only for reference.

RP120-20-4.7-QD

Part No RP120-20-4.7-QD
Manufacturer Astrodyne Corporation
Catalog Power Line Filter Modules
Description MEDIUM - HIGH PERF SNGL STAGE PW  /  Single Phase EMC/EMI Line Filter 20 A 250VAC 50/60Hz Single Stage Quick Connect
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Astrodyne TDI
Series RP120
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 20 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CE, cURus, SEMKO
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Base Product Number RP120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 3109-RP120-20-4.7-QD
Standard Package 1
Win Source Part Number 1162162-RP120-20-4.7-QD
Ultra Librarian 3D Model Ultra Librarian RP120-20-4.7-QD CAD Model

Description

This electronic component is a power line filter module with a single stage configuration. The Win Source Part Number for this component is 1162162-RP120-20-4.7-QD.

  • Current Rating: 20A
  • Voltage Rating: 250V AC
  • Application: General purpose
  • Frequency: 50/60Hz
  • Mounting: Chassis mount
  • Temperature Range: -25°C to 100°C
  • Approvals: CE, cURus, and SEMKO
