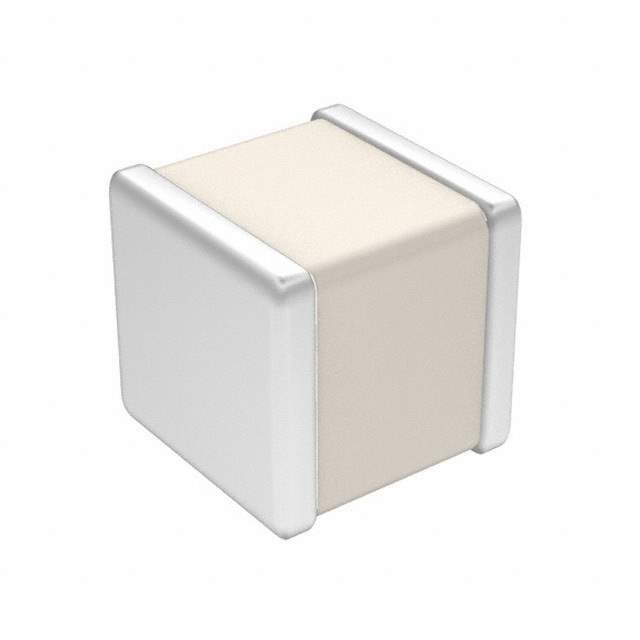

The 800A470JT250XT is a high-performance ceramic capacitor manufactured by ATC (American Technical Ceramics). These capacitors are designed for demanding applications requiring high reliability, high voltage, and stable performance over a wide temperature range. ATC capacitors are known for their robust construction and ability to withstand harsh environments.

Applications:

• RF and Microwave circuits: Used in filters, oscillators, and matching networks.
• High-frequency power amplifiers: Provides stable capacitance in high-power RF amplifiers.
• Medical devices: Employed in critical applications where reliability is paramount.
• Aerospace and defense: Utilized in military and space applications due to their ruggedness and performance.
• Test and measurement equipment: Ensures accurate and stable performance in precision instruments.

Features:

• High voltage rating: Designed to withstand high voltage levels without breakdown.
• High Q factor: Exhibits low losses, making it suitable for high-frequency applications.
• Stable capacitance over temperature: Maintains capacitance within a narrow tolerance over a wide temperature range.
• Low ESR (Equivalent Series Resistance): Minimizes power dissipation and improves circuit efficiency.
• RoHS compliant: Free from hazardous substances, making it environmentally friendly.

Benefits:

• Improved circuit performance: Enables high-efficiency and stable operation in RF and microwave circuits.
• Enhanced reliability: Ensures dependable performance in demanding applications.
• Reduced power consumption: Minimizes energy losses, leading to more efficient devices.
• Long lifespan: Offers a durable and long-lasting solution for high-frequency applications.
• Compliance with environmental standards: Meets RoHS requirements, ensuring environmental responsibility.

Additional Details:

The 800A470JT250XT likely indicates a capacitance value of 47pF, a tolerance of 5% (J), and a voltage rating of 250V. ATC capacitors are typically constructed using ceramic dielectric materials and are available in various case sizes and termination styles. Refer to the official ATC datasheet for detailed specifications and performance characteristics.
