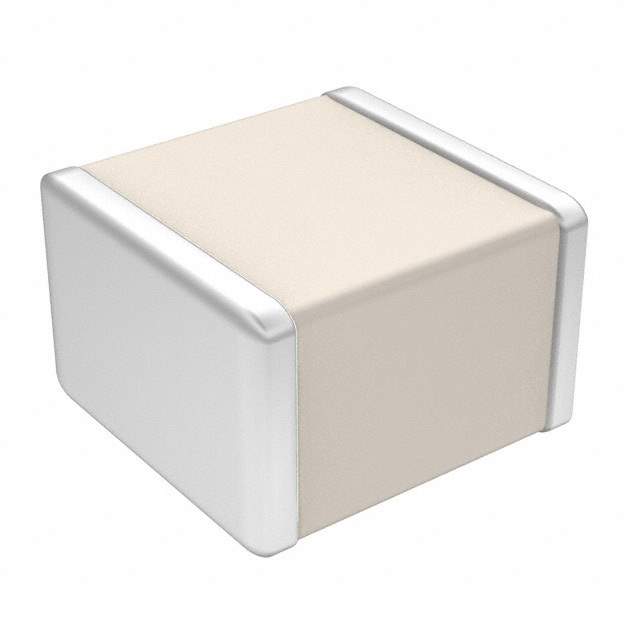

The 800B102JT50XT is a high-performance multilayer ceramic capacitor (MLCC) manufactured by ATC (American Technical Ceramics). It is designed for demanding applications requiring high reliability, high voltage, and stable performance over a wide temperature range. This capacitor utilizes a robust ceramic dielectric material, providing exceptional electrical characteristics and long-term stability.

Applications

• RF and Microwave circuits
• High-frequency power amplifiers
• Filter networks
• Bypass and decoupling applications in high-voltage circuits
• Medical devices
• Aerospace and defense systems

Features

• High Voltage: Rated for 500VDC.
• High Q: Offers a high Q factor, minimizing losses in high-frequency applications.
• Low ESR: Features a low Equivalent Series Resistance (ESR) for efficient power transfer.
• Stable Performance: Exhibits stable capacitance over temperature and voltage variations.
• RoHS Compliant: Meets RoHS requirements for environmental compliance.
• Multilayer Construction: Utilizes multilayer ceramic construction for compact size and high capacitance value.

Benefits

• Improved Circuit Performance: High Q and low ESR contribute to improved signal integrity and reduced power dissipation.
• Enhanced Reliability: Robust design ensures reliable operation in harsh environments.
• Space Saving: Compact size allows for high-density circuit designs.
• Long Lifespan: Stable capacitance and voltage ratings ensure long-term reliability.
• Reduced Noise: Effective decoupling capabilities minimize noise and interference in sensitive circuits.

Technical Specifications

While precise technical specifications may vary, typical specifications for similar ATC high-voltage MLCCs include:

• Capacitance: 1000 pF (102)
• Voltage Rating: 500 VDC
• Temperature Coefficient of Capacitance (TCC): Typically within a specified range (e.g., ±15%)
• Operating Temperature Range: -55°C to +125°C
• Tolerance: J = ±5%
• Dielectric Material: Ceramic
• Termination Material: Various options, including nickel barrier with tin plating.
• Case Size: 800B (specific dimensions vary)

Note: Always refer to the official ATC datasheet for the 800B102JT50XT for precise specifications and application guidelines.
