Same model may have multiple batches, images only for reference.

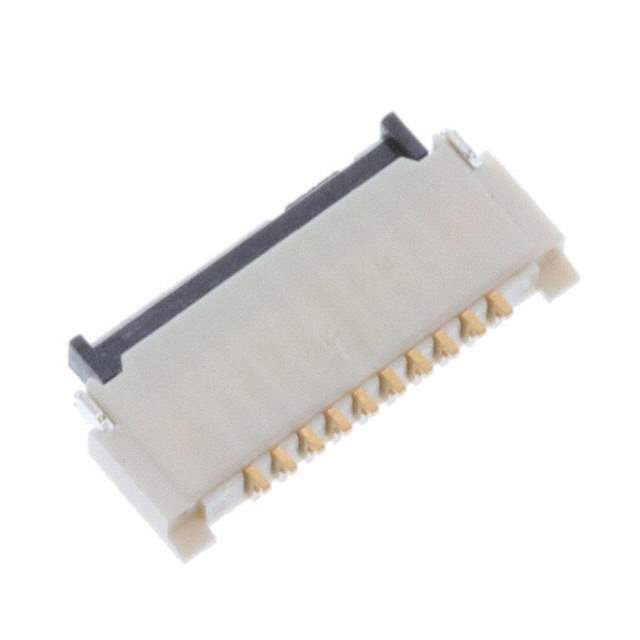

046809610110846+ Real Image
Same model may have multiple batches, images only for reference.

046809610110846+

Part No 046809610110846+
Manufacturer AVX Corp/Kyocera Corp
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.5MM PITCH - 10 POS - RT ANGLE / 10 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer KYOCERA AVX
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 10
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Plastic
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Current Rating (Amps) 0.5A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 1253-046809610110846+TR-ND,478-046809610110846+DKR,1253-046809610110846+TR,478-046809610110846+,1253-046809610110846+DKR,1253-046809610110846+CT-ND,1253-046809610110846+DKR-ND,478-046809610110846+-ND,1253-046809610110846+CT,478-046809610110846+TR,478-046809610110846+CT
Standard Package 4,000
Win Source Part Number 1333385-046809610110846+
Ultra Librarian 3D Model Ultra Librarian 046809610110846+ CAD Model

Description

The KYOCERA AVX 046809610110846+ is an FFC, FPC (Flat Flexible) Connector Assembly with a pitch of 0.020" (0.50mm) and 10 positions.

  • Features: Solder Retention and Zero Insertion Force (ZIF)
  • Cable End Type: Notched
  • Connector/Contact Type: Contacts, Bottom
  • Flat Flex Type: FFC, FPC
  • Mounting: Surface Mount, Right Angle
