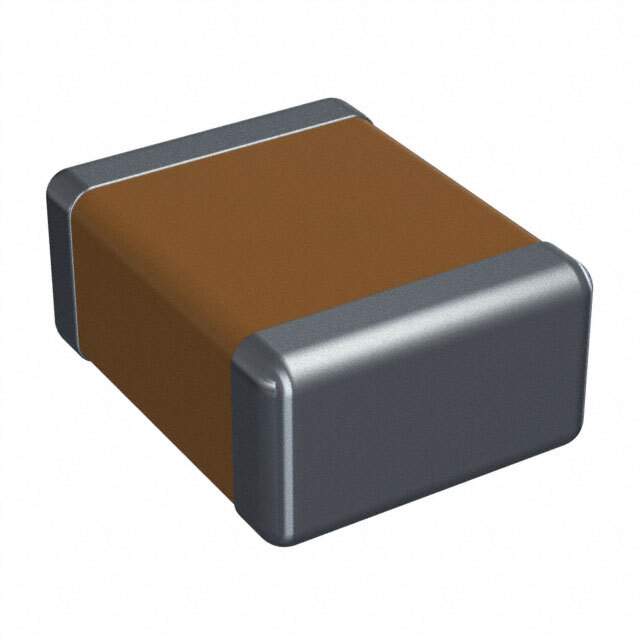

Same model may have multiple batches, images only for reference.

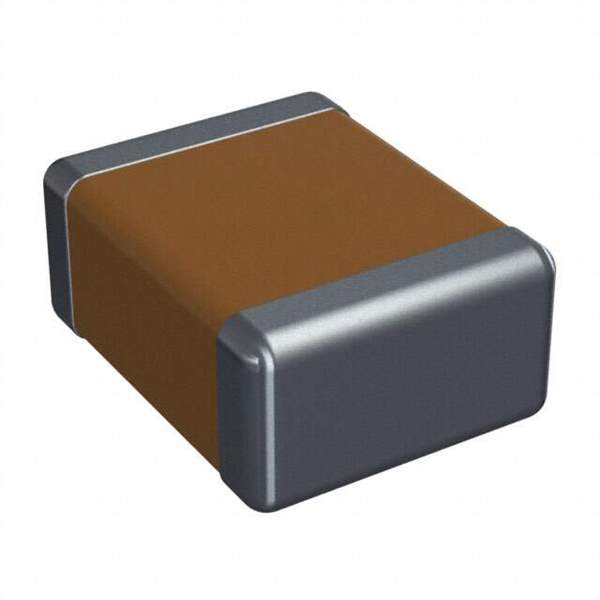

12101U5R6CAT2A Real Image
Same model may have multiple batches, images only for reference.

12101U5R6CAT2A

Part No 12101U5R6CAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 5.6PF 100V NP0 1210 / 5.6 pF ±0.25pF 100V Ceramic Capacitor C0G, NP0 1210 (3225 Metric)
Datasheet
12101U5R6CAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series U
Package Tape & Reel (TR)
Capacitance 5.6 pF
Tolerance ±0.25pF
Voltage - Rated 100V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features Ultra Low ESR
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.49mm)
Thickness (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000
Win Source Part Number 968304-12101U5R6CAT2A
Ultra Librarian 3D Model Ultra Librarian 12101U5R6CAT2A CAD Model

Description

The 12101U5R6CAT2A is a ceramic capacitor designed for surface mount and MLCC mounting.

  • Mounting Type: Surface mount and MLCC
  • Capacitance: 5.6 pF
  • Voltage Rating: 100V
  • Tolerance: ±0.25pF
  • Temperature Coefficient: C0G, NP0
  • Features: Ultra-low ESR
  • Thickness: 0.055" (1.40mm)
  • Package: Tape & reel
  • Standard Package: 2,000
  • Applications: RF, microwave, and high frequency
  • ECCN: EAR99
  • REACH: Unaffected
  • Alternative Parts: Not available
