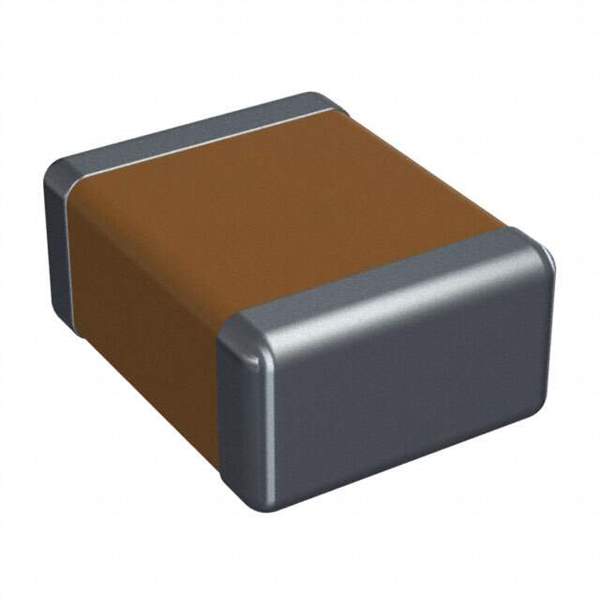

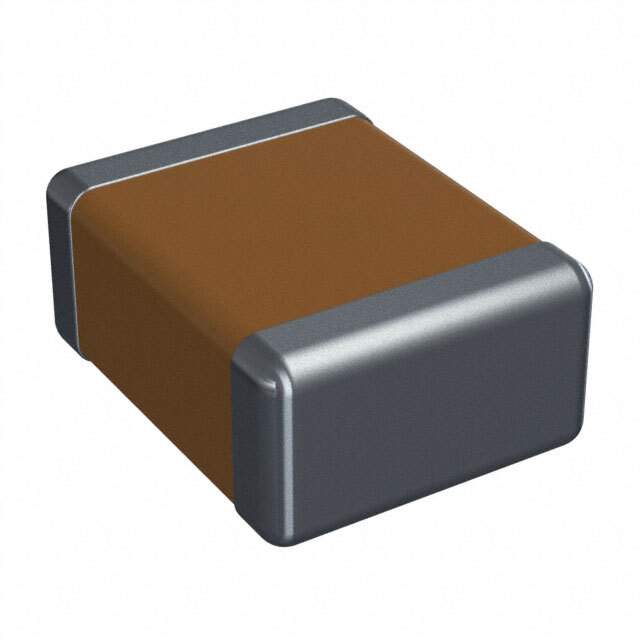

12101U821KAT2A Real Image
Same model may have multiple batches, images only for reference.

12101U821KAT2A

Part No 12101U821KAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 820PF 100V NP0 1210 / 820 pF ±10% 100V Ceramic Capacitor C0G, NP0 1210 (3225 Metric)
Datasheet
12101U821KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series U
Package Tape & Reel (TR)
Capacitance 820 pF
Tolerance ±10%
Voltage - Rated 100V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features Ultra Low ESR
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Dimension 0.126" L x 0.098" W (3.20mm x 2.49mm)
Thickness (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000
Win Source Part Number 1019300-12101U821KAT2A
Ultra Librarian 3D Model Ultra Librarian 12101U821KAT2A CAD Model

Description

The KYOCERA AVX U series ceramic capacitor is a high-quality, ultra-low ESR capacitor.

  • Series: U series
  • ESR: Ultra-low
  • Capacitance: 820pF
  • Voltage Rating: 100V
  • Tolerance: ±10%
  • Temperature Coefficient: C0G, NP0
  • Operating Temperature Range: -55°C to 125°C
  • Package Type: Tape and reel (TR)
  • Package/Case: 1210 (3225 Metric)
  • Dimension: 0.126-inch L x 0.098-inch W (3.20mm x 2.49mm)
  • Thickness: 0.055-inch (1.40mm)
  • Applications: RF, microwave, and high-frequency applications
  • REACH: Unaffected
  • Standard Package: 2,000
