Part No 145804030050829+
Manufacturer AVX Corp/Kyocera Corp
Catalog Rectangular - Board to Board Connectors

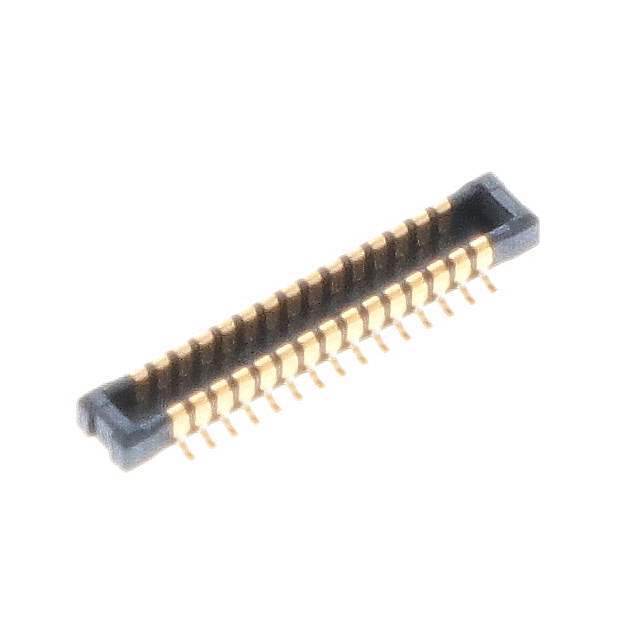

Description PLUG - 0.4MM PITCH - 30 POS
Datasheet
145804030050829+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309847-145804030050829+
Manufacturer KYOCERA AVX
Category Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Plug, Outer Shroud Contacts
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Number of Positions 30
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.030" (0.75mm)
Ultra Librarian 3D Model Ultra Librarian 145804030050829+ CAD Model

Description

The 5804 Series are 0.4mm pitch, ultra low profile Board to Board Connectors featuring a stacking height of 0.9/1.5/2.0mm. These products were developed to meet market needs for miniaturization of mobile phones, digital AV equipment, etc. Space saving is greatly achieved with a width of 2.4mm.
