Same model may have multiple batches, images only for reference.

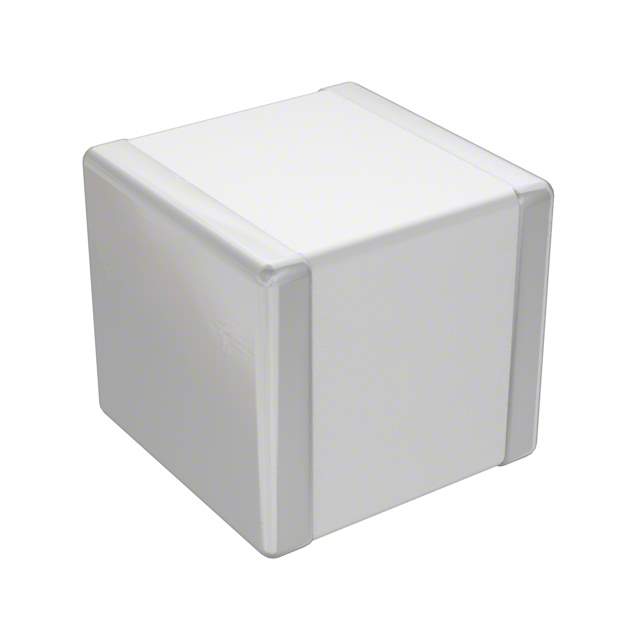

AQ147M2R2CAJME Real Image
Same model may have multiple batches, images only for reference.

AQ147M2R2CAJME

Part No AQ147M2R2CAJME
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 2.2PF 500V 1111 / 2.2 pF ±0.25pF 500V Ceramic Capacitor M 1111 (2828 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series AQ
Package Tape & Reel (TR)
Product Status Obsolete
Capacitance 2.2 pF
Tolerance ±0.25pF
Voltage - Rated 500V
Temperature Coefficient M
Temperature Range - Operating -55°C ~ 175°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1111 (2828 Metric)
Dimension 0.110" L x 0.110" W (2.79mm x 2.79mm)
Thickness (Max) 0.102" (2.59mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000
Win Source Part Number 978961-AQ147M2R2CAJME
Ultra Librarian 3D Model Ultra Librarian AQ147M2R2CAJME CAD Model

Description

This ceramic capacitor is designed for RF, microwave, and high frequency applications. With a capacitance of 2.2 pF and a voltage rating of 500V, it features a high Q and low loss, making it ideal for a variety of uses.

  • Tolerance: ±0.25pF
  • Temperature Coefficient: M
  • Package: tape and reel (TR)
  • Standard Package: 2,000
  • Dimensions: 0.110" L x 0.110" W (2.79mm x 2.79mm)
  • Thickness (max): 0.102" (2.59mm)
  • Lead spacing: Not Specified
  • Lead style: Not Specified
  • Mounting: surface mountable with MLCC mounting type
  • Series: AQ series
  • Manufacturer: Kyocera AVX
  • Status: obsolete
  • RoHS: non-compliant
