Same model may have multiple batches, images only for reference.

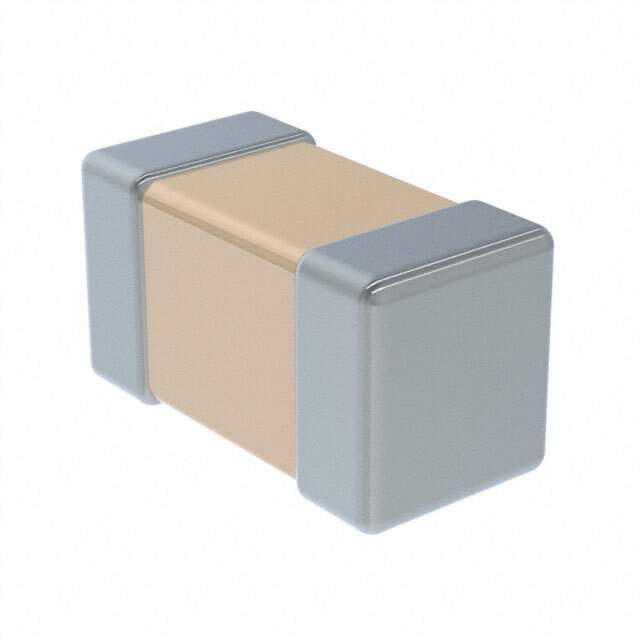

CM02CG1R5B25AH Real Image
Same model may have multiple batches, images only for reference.

CM02CG1R5B25AH

Part No CM02CG1R5B25AH
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 1.5PF 25V C0G/NP0 01005 / 1.5 pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series CM
Package Tape & Reel
Capacitance 1.5 pF
Tolerance ±0.1pF
Voltage - Rated 25V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 01005 (0402 Metric)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Thickness (Max) 0.009" (0.22mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1253-CM02CG1R5B25AHDKR,1253-CM02CG1R5B25AHTR,1253-CM02CG1R5B25AHCT
Standard Package 20,000
Win Source Part Number 1114061-CM02CG1R5B25AH
Ultra Librarian 3D Model Ultra Librarian CM02CG1R5B25AH CAD Model

Description

The KYOCERA AVX 1114061-CM02CG1R5B25AH is a ceramic capacitor with a capacitance of 1.5 pF and a voltage rating of 25V.

  • Capacitance: 1.5 pF
  • Voltage Rating: 25V
  • Tolerance: ±0.1pF
  • Temperature Coefficient: C0G, NP0
  • Application: General purpose
  • Packaging: Tape and reel
  • Package Size: 01005 (0402 Metric)
  • Thickness: 0.009" (0.22mm)
  • Operating Temperature Range: -55°C ~ 125°C
