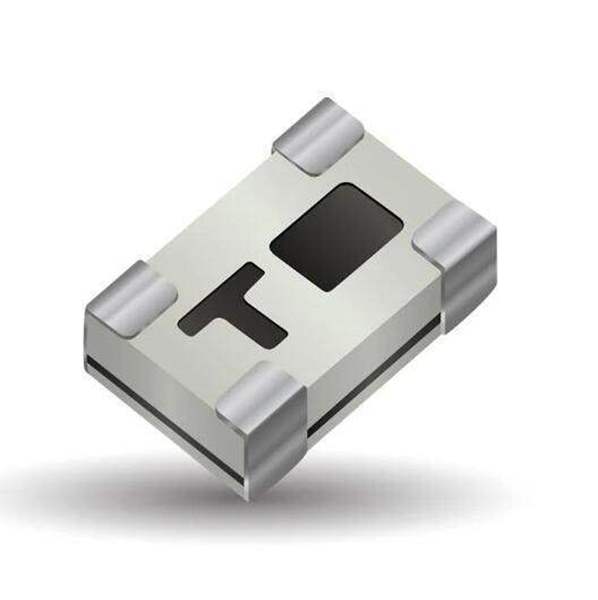

LP0805A0942ASTRKYOCERA AVX
Same model may have multiple batches, images only for reference.

LP0805A0942ASTR

Part No LP0805A0942ASTR
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Filters
Description RF FILTER LOW PASS 0805
Datasheet
LP0805A0942ASTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Category Filters RF Filters
Packaging  Tape & Reel (TR)
Part Status Active
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 4 PC Pad
Size / Dimension 0.080" L x 0.061" W (2.03mm x 1.55mm)
Height (Max) 0.044" (1.12mm)
Win Source Part Number WS1307488-LP0805A0942ASTR
Ultra Librarian 3D Model Ultra Librarian LP0805A0942ASTR CAD Model

Description

Frequency RF Filter (Radio Frequency) Bandwidth 0805 (2012 Metric), 4 PC Pad
