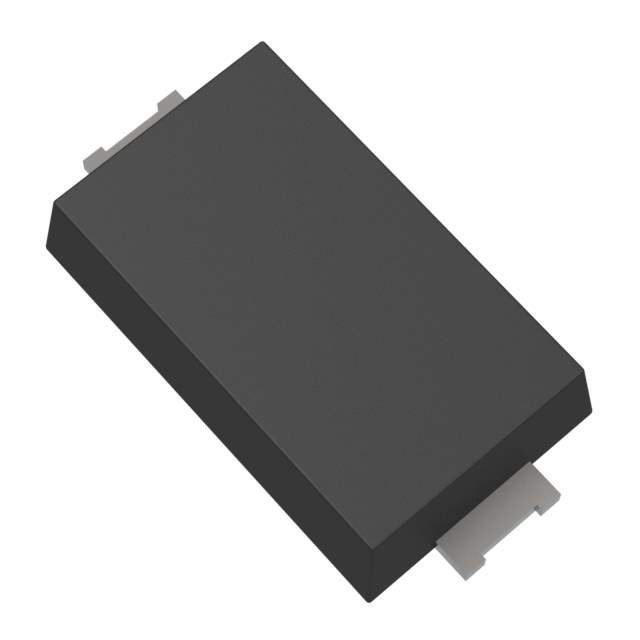

NA05HSA08 Real Image
Same model may have multiple batches, images only for reference.

NA05HSA08

Part No NA05HSA08
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 80V 5A DO-221BC / Diode Schottky 80 V 5A Surface Mount NA (DO-221BC)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 80 V
Mounting SMD (SMT)
Package / Case DO-221BC, SMA Flat Leads Exposed Pad
Supplier Device Package NA (DO-221BC)
Operating Temperature - Junction -40°C ~ 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 478-NA05HSA08-ND,1253-NA05HSA08TR-ND,478-NA05HSA08,478-NA05HSA08DKR,1253-NA05HSA08TR,478-NA05HSA08TR,478-NA05HSA08CT
Standard Package 3,000
Win Source Part Number 1154214-NA05HSA08
Ultra Librarian 3D Model Ultra Librarian NA05HSA08 CAD Model

Description

The NA05HSA08 is a Schottky diode manufactured by KYOCERA AVX.

  • Type: Schottky Diode
  • Application: Rectifier
  • Voltage Rating: 80V
  • Current Rating: 5A
  • Forward Voltage: 700 mV @ 5 A
  • Reverse Leakage Current: 100 µA @ 80 V
  • Package: DO-221BC, SMA Flat Leads Exposed Pad
  • Temperature Range: -40°C ~ 150°C
