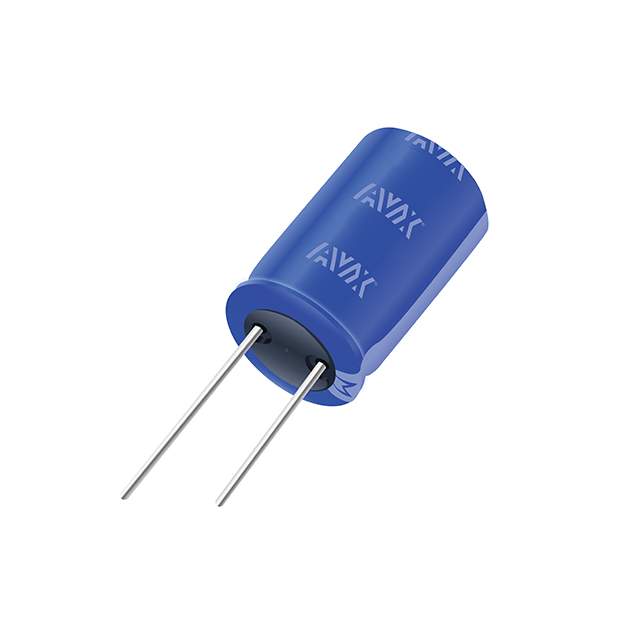

SCCV40B506SRB Real Image
Same model may have multiple batches, images only for reference.

SCCV40B506SRB

Part No SCCV40B506SRB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCV40B506SRB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC
Package Bulk
Capacitance 50 F
Tolerance -10%, +30%
Voltage - Rated 2.7 V
ESR (Equivalent Series Resistance) 18mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.315" (8.00mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names SCCV40B506MRB,478-10021
Standard Package 150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302734-SCCV40B506SRB
Ultra Librarian 3D Model Ultra Librarian SCCV40B506SRB CAD Model

Description

KYOCERA AVX SCCV40B506SRB is an electric double layer capacitor used as a supercapacitor.

  • Capacitance: 50F
  • Voltage Rating: 2.7V
  • Mounting Type: Through-Hole
  • Package: Radial Can
  • Temperature Range: -40°C to 65°C
  • Tolerance: -10% to +30%
  • ESR: 18mOhm @ 1kHz
  • Lifetime: 1000 hours @ 60°C
