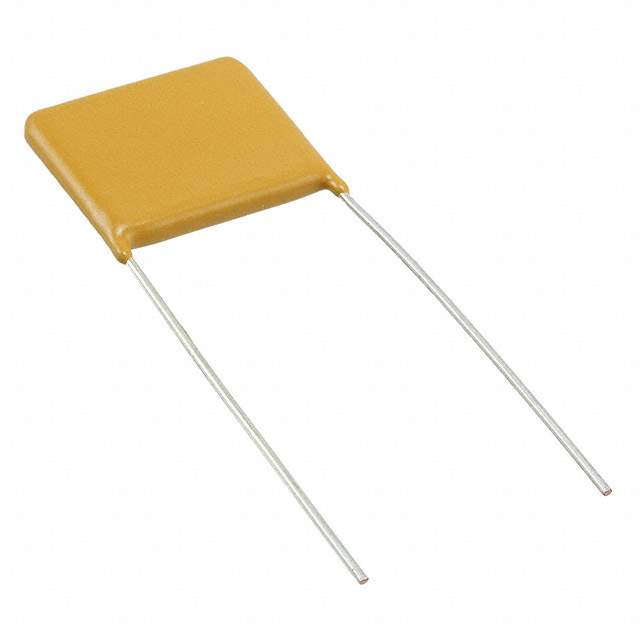

SV17HA802JAR Real Image
Same model may have multiple batches, images only for reference.

SV17HA802JAR

Part No SV17HA802JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV17HA802JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 8000 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.929" L x 0.250" W (23.60mm x 6.35mm)
Height - Seated (Max) 0.780" (19.80mm)
Lead Spacing 0.799" (20.30mm)
Lead Style Straight
Other Names -SV17HA802JAR,478-6832
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302915-SV17HA802JAR
Ultra Librarian 3D Model Ultra Librarian SV17HA802JAR CAD Model

Description

The KYOCERA AVX SV17HA802JAR capacitor is a ceramic capacitor that is designed to provide high voltage and low loss.

  • Capacitance: 8000pF
  • Tolerance: ±5%
  • Voltage Rating: 3000V (3kV)
  • Package: Radial
  • Mounting Type: Through-Hole
  • Height (Seated): 0.780 inches (19.80mm)
  • Lead Spacing: 0.799 inches (20.30mm)
  • Temperature Range: -55 degrees Celsius to 125 degrees Celsius
  • Application: General Purpose
