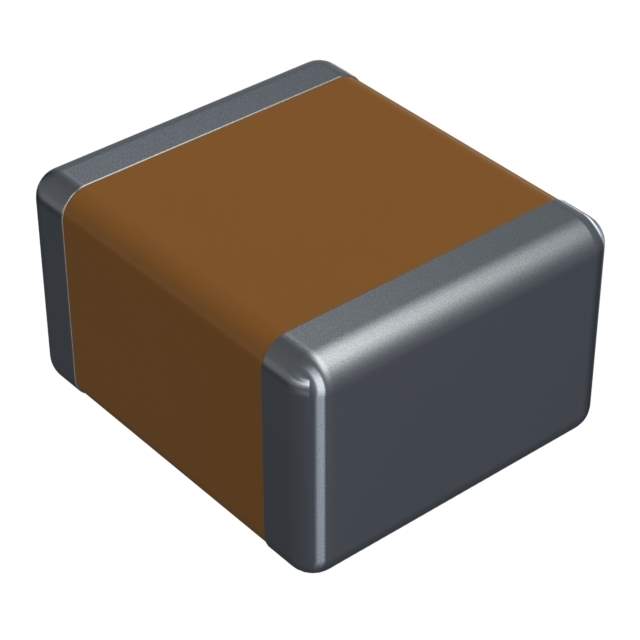

2220GC103KAT1A Real Image
Same model may have multiple batches, images only for reference.

2220GC103KAT1A

Part No 2220GC103KAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 2KV X7R 2220
Datasheet
2220GC103KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 10000pF
Tolerance ±10%
Voltage Rating DC 2000V (2kV)
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.130" (3.30mm)
Win Source Part Number 761834-2220GC103KAT1A
Popularity Medium
Supply and Demand Status Balance
Family Name 2220
Introduction Date June 30, 2003
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 2220GC103KAT1A CAD Model

Description

The AVX Corporation 761834-2220GC103KAT1A is a surface mountable, MLCC capacitor from AVX Corporation.

  • Voltage Rating: 2000V (2kV)
  • Capacitance: 10000pF
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Category: Capacitors
  • Temperature Range: -55°C to 125°C
  • Thickness (Maximum): 0.130" (3.30mm)
  • Dimension: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Supply and Demand: Balanced
  • Packaging: Reel
  • Introduction Date: June 30, 2003
  • ECCN: EAR99
  • Compliance: Halogen-free
  • EOL Date: Estimated 2027
