Same model may have multiple batches, images only for reference.

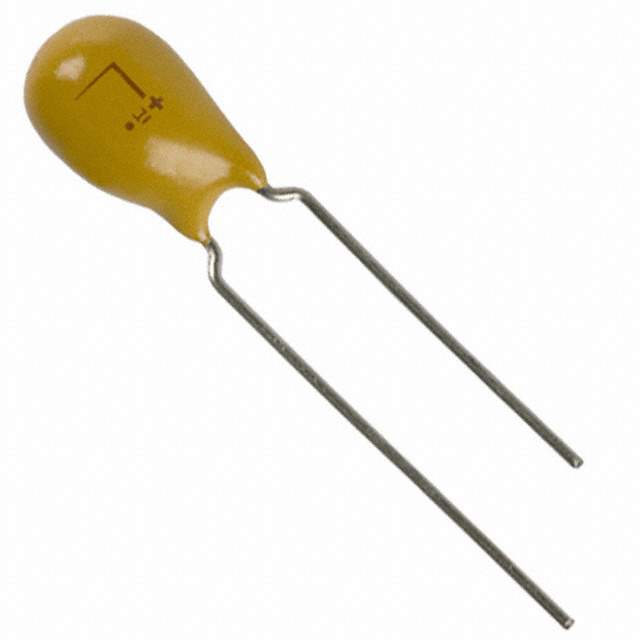

TAP226M025CCS Real Image
Same model may have multiple batches, images only for reference.

TAP226M025CCS

Part No TAP226M025CCS
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 25V 20% RADIAL / Cap Tant Solid 22uF 25V 20% (7 X 12mm) Radial 5mm 1.5 Ohm 125°C Bulk
Datasheet
TAP226M025CCS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TAP
Packaging Bulk
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 25V
Type Conformal Coated
ESR (Equivalent Series Resistance) 1.5 Ohm
Operating Temperature Range -55°C ~ 125°C
Lifetime @ Temp. 1000 Hrs @ 85°C
Mounting Style Through Hole
Package Radial
Dimension 0.276" Dia (7.00mm)
Height - Seated (Maximum) 0.472" (12.00mm)
Lead Spacing 0.197" (5.00mm)
Manufacturer Size Code H
Features General
Win Source Part Number 796287-TAP226M025CCS
Popularity Medium
Supply and Demand Status Limited
Family Name TAP
Introduction Date December 31, 2004
ECCN EAR99
Country of Origin El Salvador
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TAP226M025CCS CAD Model

Description

AVX Corporation's TAP series capacitor is a high-quality component designed for a variety of applications.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • ESR: 1.5 Ohm
  • Voltage Rating: 25V
  • Mounting: Through hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height: 0.472" (12.00mm)
  • Halogen-Free: Yes
  • Estimated EOL Date: 2028
