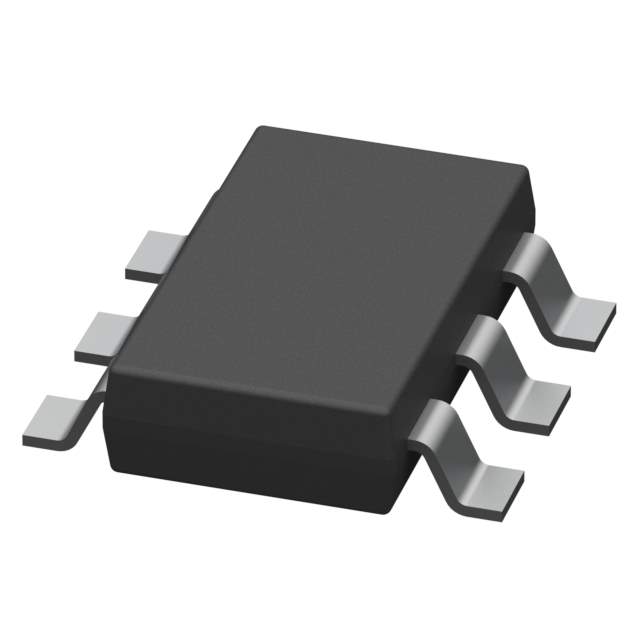

The IQS127D-00000TSR is a capacitive proximity and touch sensor from Azoteq. This integrated circuit is designed for use in a wide range of applications, including human-machine interfaces (HMIs), appliances, and industrial control systems.

Applications:

• Touchscreen replacement
• Proximity detection
• Gesture recognition
• Capacitive buttons and sliders
• Liquid level sensing
• Wearable devices

Features:

• Single-channel capacitive sensor: Measures capacitance changes to detect proximity or touch.
• Automatic tuning: Adapts to variations in environmental conditions and sensor geometry.
• Low power consumption: Suitable for battery-powered applications.
• Digital output: Provides a digital signal indicating proximity or touch detection.
• Adjustable sensitivity: Allows for fine-tuning of the detection threshold.
• Integrated noise filtering: Minimizes false triggers caused by electrical noise.
• I2C communication interface: Allows for easy communication with a microcontroller.
• Small form factor: Suitable for space-constrained applications.

Benefits:

• Improved user experience: Enables intuitive and responsive touch interfaces.
• Increased reliability: Robust sensing technology minimizes false triggers.
• Reduced power consumption: Extends battery life in portable devices.
• Simplified design: Integrated features reduce component count and design complexity.
• Cost-effective solution: Provides a high-performance sensing solution at a competitive price.

Additional Details:

The IQS127D-00000TSR features a supply voltage range typically between 1.8V and 3.6V. Its operating current is in the microampere range, making it suitable for low-power applications. The specific sensitivity and response time can be configured through the I2C interface. Refer to the datasheet for detailed electrical characteristics, application notes, and programming guidelines.
