0685-2500-01

Part No 0685-2500-01
Manufacturer Bel Fuse Inc.
Catalog Fuses

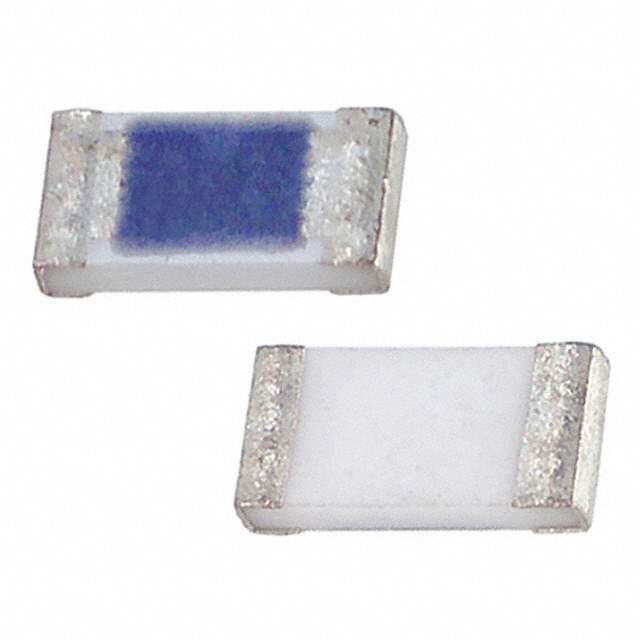

Description FUSE BOARD MNT 2.5A 125VAC 63VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2.5A
Voltage Rating - AC 125V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A AC, 50A DC
Nominal Melting - I2t 0.25
Approvals CSA, cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.038 Ohm
Win Source Part Number 197154-0685-2500-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0685-2500-01 CAD Model

Description

Description

The 0685-2500-01 component is engineered for high-efficiency operations in both industrial and commercial applications. Its advanced design allows it to meet the stringent demands of modern electronic systems.

Applications

  • Industrial control systems
  • Automated machine control
  • Network infrastructure hardware
  • Data storage systems

Features and Benefits

  • High durability for long-term reliability
  • Stable performance even in harsh environments
  • Easy to mount with flexible integration options
  • Low maintenance with maximum uptime

Additional Details

Favored in settings that require high-volume and precise operations, the 0685-2500-01 is recognized for its exceptional durability and adaptability.
