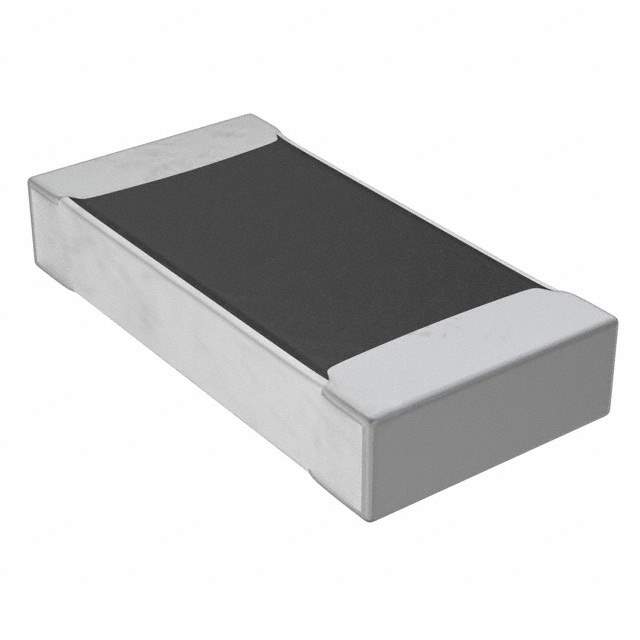

0685-3500-S1

Part No 0685-3500-S1
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MNT 3.5A 63VAC/VDC 1206
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3.5A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 1.18
Approvals CE, cURus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.04 Ohm
Win Source Part Number 197155-0685-3500-S1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0685-3500-S1 CAD Model

Description

Description

Built to deliver superior performance, the 0685-3500-S1 is a versatile electronic component suited for applications demanding high standards of quality and precision.

Applications

  • Signal processing equipment
  • Electronics testing and diagnostics
  • Automated manufacturing systems
  • Advanced security systems

Features and Benefits

  • Exceptional accuracy with quick response times
  • Robust construction for extensive use
  • Designed for seamless integration
  • Cost-efficient and reduced power use

Additional Details

Valued in sectors where precision and reliability are critical, the 0685-3500-S1 is a versatile and reliable choice that enhances system performance.
