Same model may have multiple batches, images only for reference.

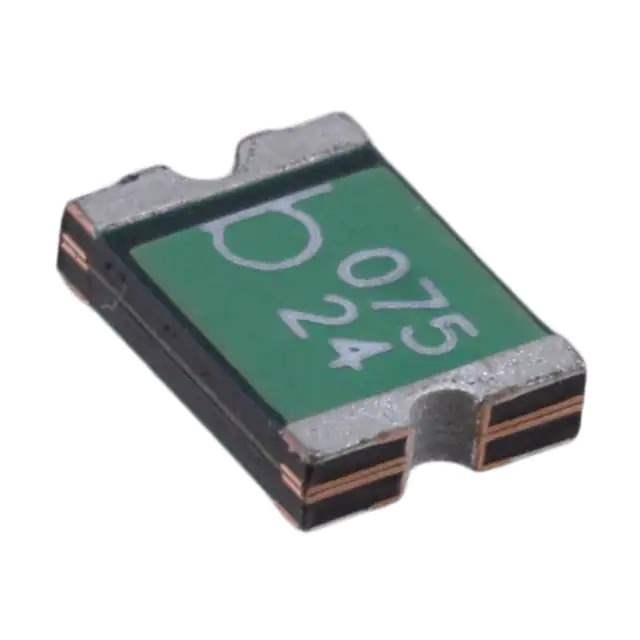

0ZCC0260FF2C Real Image
Same model may have multiple batches, images only for reference.

0ZCC0260FF2C

Part No 0ZCC0260FF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 2.6A 1812
Datasheet
0ZCC0260FF2C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCC
Package Tape & Reel
Product Status Obsolete
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 2.6 A
Current - Trip (It) 5 A
Current - Max 100 A
Time to Trip 2.5 s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Max) 47 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.047" (1.20mm)
Approval Agency cURus, TUV
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 853459-0ZCC0260FF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCC0260FF2C CAD Model

Description

The 853459-0ZCC0260FF2C is a polymeric PTC resettable fuse from Bel Fuse Inc.

  • Series: 0ZCC
  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Hold Current: 2.6A
  • Trip Current: 5A
  • Time to Trip: 2.5 seconds
  • Mounting: Surface Mount
  • Package: Concave 1812
  • Resistance (Initial): 15 mOhms
  • Resistance (Post Trip): 47 mOhms
  • REACH: Compliant
  • ECCN: EAR99
