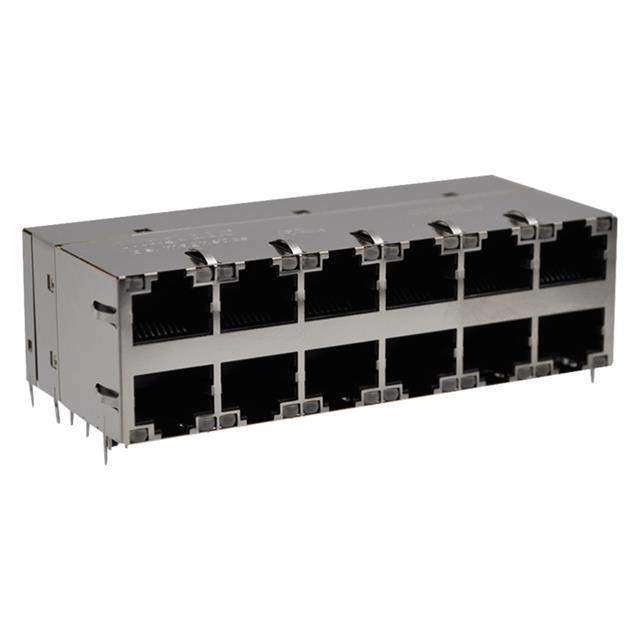

Same model may have multiple batches, images only for reference.

08AN-2C6R-GK-C

Get a Quote

Part No	08AN-2C6R-GK-C
Manufacturer	Bel Fuse Inc.
Catalog	Modular Connectors
Description	CONN JACK 2X6 POEP 30W / 10 Port RJ45Through Hole 10/100/1000 Base-T, Power over Ethernet+ (PoE+)
Datasheet	08AN-2C6R-GK-C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	Bel Fuse Inc.
Series	MagJack®
Package	Tray
Connector Type	RJ45
Number of Ports	10
Number of Rows	2
Applications	10/100/1000 Base-T, Power over Ethernet+ (PoE+)
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	1.004" (25.50mm)
LED Color	Green, Yellow - Green, Yellow
Shielding	Shielded, EMI Finger
Features	Filter
Tab Direction	Up and Down
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	-40°C ~ 85°C
Contact Finish Thickness	50.0µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Standard Package	15
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350814-08AN-2C6R-GK-C
Ultra Librarian 3D Model	Ultra Librarian 08AN-2C6R-GK-C CAD Model

Alternative Products

Description

The MagJack Connector is a highly reliable and efficient product from Bel Fuse Inc. that is perfect for use in a variety of applications.

Orientation: 90° Angle (Right)
Shielding: Shielded, EMI Finger
Height Above Board: 1.004" (25.50mm)
Package: Tray
Temperature Range: -40°C to 85°C
Applications: 10/100/1000 Base-T, Power over Ethernet+ (PoE+)
LED Color: Green, Yellow
Number of Ports: 10
