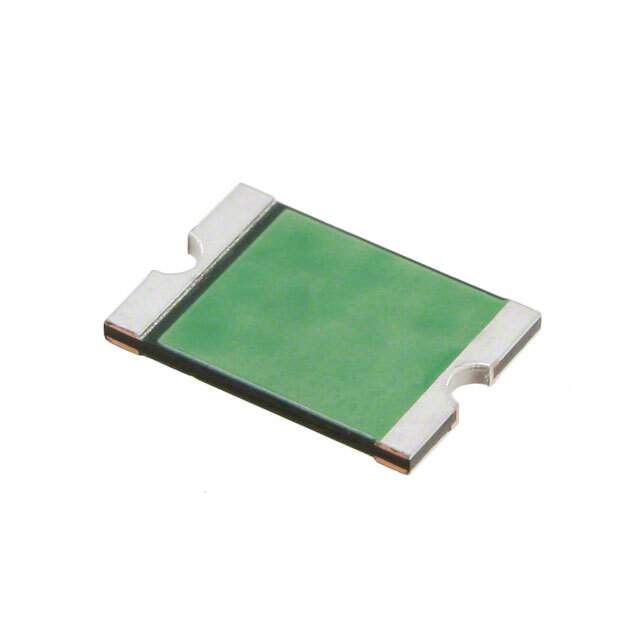

0ZCF0075AF2C Real Image
Same model may have multiple batches, images only for reference.

0ZCF0075AF2C

Part No 0ZCF0075AF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 750MA 2920 / Polymeric PTC Resettable Fuse 60V 750 mA Ih Surface Mount 2920 (7351 Metric), Concave
Datasheet
0ZCF0075AF2C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCF
Package Tape & Reel
Type Polymeric
Voltage - Max 60V
Current - Max 100 A
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 180 mOhms
Resistance - Post Trip (R1) (Max) 1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2920 (7351 Metric) , Concave
Size / Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.045" (1.15mm)
Approval Agency AEC-Q200, cURus, TUV
Standard Package 2,000
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1339922-0ZCF0075AF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCF0075AF2C CAD Model

Description

The Bel Fuse Inc. PTC resettable fuse is a polymeric 1.5A surface mount 2920 (7351 Metric), concave-shaped fuse that is part of the 0ZCF series.

  • Series: 0ZCF
  • Type: Polymeric
  • Current: 1.5A
  • Mounting Type: Surface Mount
  • Package / Case: 2920 (7351 Metric), Concave
  • Voltage Rating - Max: 60V
  • Current Rating - Max: 100A
  • Time to Trip: 300ms
  • Current - Hold (Ih) (Max): 750mA
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Operating Temperature: -40°C to 85°C
  • Size / Dimension: 0.290" L x 0.202" W (7.36mm x 5.12mm)
  • Approvals: AEC-Q200, cURus, TUV
