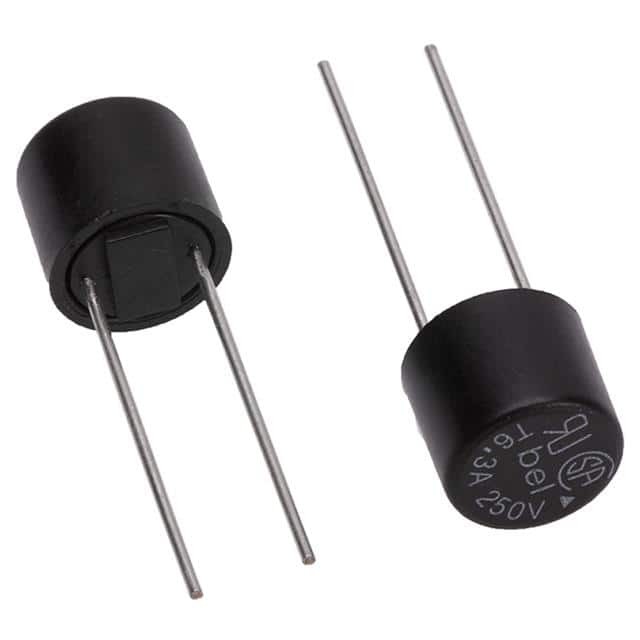

Same model may have multiple batches, images only for reference.
MRF 800 AMMO Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

MRF 800 AMMO

Part No MRF 800 AMMO
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
MRF 800 AMMO Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series MRF
Package Tape & Box (TB)
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 800 mA
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case Radial, Can, Vertical
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.4
Approval Agency AEC-Q200, CE, CSA, cULus, SEMKO, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.329" Dia x 0.303" H (8.35mm x 7.70mm)
DC Cold Resistance 0.071 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1316019-MRF 800 AMMO
Ultra Librarian 3D Model Ultra Librarian MRF 800 AMMO CAD Model

Description

The 1316019-MRF 800 AMMO is a fast blow board mount fuse used for circuit protection.

  • Voltage Rating: 250 V AC
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 35A
  • Current Rating: 800 mA
  • Mounting Type: Through Hole
  • Package / Case: Tape and Box
  • Operating Temperature: -55°C ~ 125°C
  • Size / Dimension: 0.329 inches Diameter
  • Height: 0.303 inches
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.10.0040
  • Manufacturer: Bel Fuse Inc.
  • Approvals: AEC-Q200, CE, CSA, cULus, SEMKO, VDE
