Same model may have multiple batches, images only for reference.

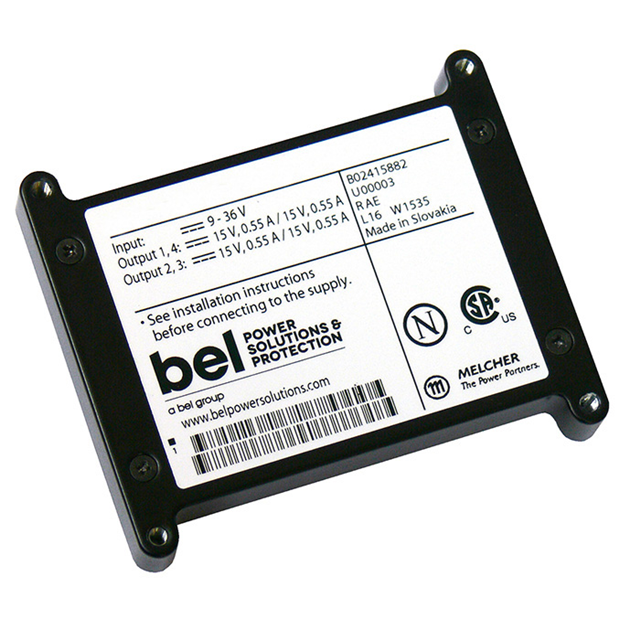

70IMX35D15D15-8G Real Image
Same model may have multiple batches, images only for reference.

70IMX35D15D15-8G

Part No 70IMX35D15D15-8G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 15V 15V 35W / Isolated Module, Conformal Coated DC DC Converter 4 Output 15V 15V 15V 600mA, 600mA, 600mA 40V - 121V Input
Datasheet
70IMX35D15D15-8G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX35 (35W)
Package Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 4
Voltage - Input (Min) 40V
Voltage - Input (Max) 121V
Voltage - Output 1 15V
Voltage - Output 2 15V
Voltage - Output 3 15V
Current - Output (Max) 600mA, 600mA, 600mA
Power (Watts) 35 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 19-DIP Module
Size / Dimension 3.00" L x 2.50" W x 0.41" H (76.2mm x 63.5mm x 10.5mm)
Base Product Number 70IMX35
Standard Package 24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351532-70IMX35D15D15-8G
Ultra Librarian 3D Model Ultra Librarian 70IMX35D15D15-8G CAD Model

Description

The 70IMX35D15D15-8G is an isolated module designed for use in power supplies in board mount applications.

  • Protection Features: Overcurrent, Overtemperature, Overvoltage, Short Circuit, Undervoltage Lockout
  • Application: Commercial ITE
  • Outputs: 4
  • Maximum Output Current: 600mA per output
  • Input Voltage Range: 40V to 121V
  • Output Voltages: 15V, 15V, and 15V
  • Efficiency: 88%
  • Mounting Type: Through Hole
  • Package Dimensions: 3.00" L x 2.50" W x 0.41" H
  • Series: Melcher IMX35
