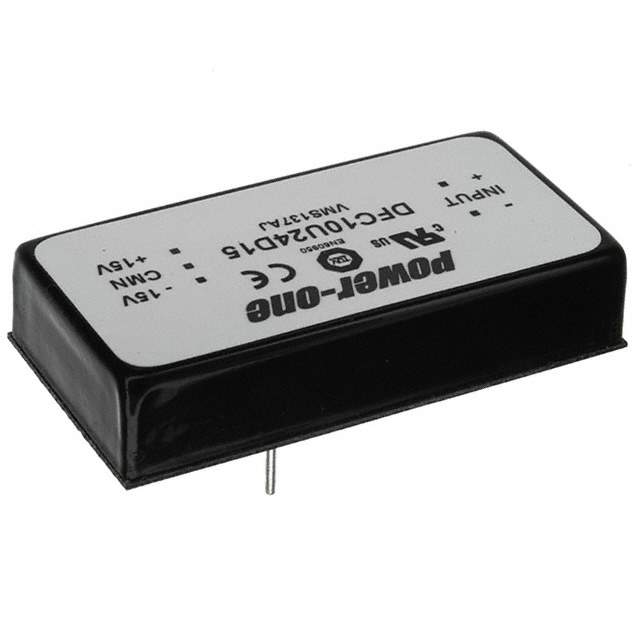

Same model may have multiple batches, images only for reference.

DFC10U24D15

Name: DFC10U24D15
Brand: Bel Power Solutions
SKU: 1032896
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DFC10U24D15
Manufacturer	Bel Power Solutions
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 320mA, 320mA 9V - 36V Input
Datasheet	DFC10U24D15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Bel Power Solutions
Series	DFC10 (10W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	320mA, 320mA
Power (Watts)	10 W
Voltage - Isolation	700 V
Applications	ITE (Commercial)
Temperature Range - Operating	-50°C ~ 100°C
Efficiency	78%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	2.02" L x 1.02" W x 0.42" H (51.3mm x 25.9mm x 10.7mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	179-1023
Standard Package	250
Win Source Part Number	1032896-DFC10U24D15
Ultra Librarian 3D Model	Ultra Librarian DFC10U24D15 CAD Model

Alternative Products

Description

The Bel Power Solutions DFC10U24D15 is a 10W Isolated Module that comes in a 5-DIP Module package.

Power: 10W
Package: 5-DIP Module
Voltage Isolation: 700V
Efficiency: 78%
Outputs: Two outputs (15V and -15V)
Features: Adjustable output and universal input
Applications: ITE (Commercial)
Status: Obsolete
Alternative Parts: PXD1024WD12, RP10-2412DEW, AEE00CC18-LS, AEE00BB18-LS, RP15-2412DAW, and BEI15-150-Q12P-CDFC10U24D15
EAR99 Compliance: Compliant
HTSUS: 8504.40.9580
