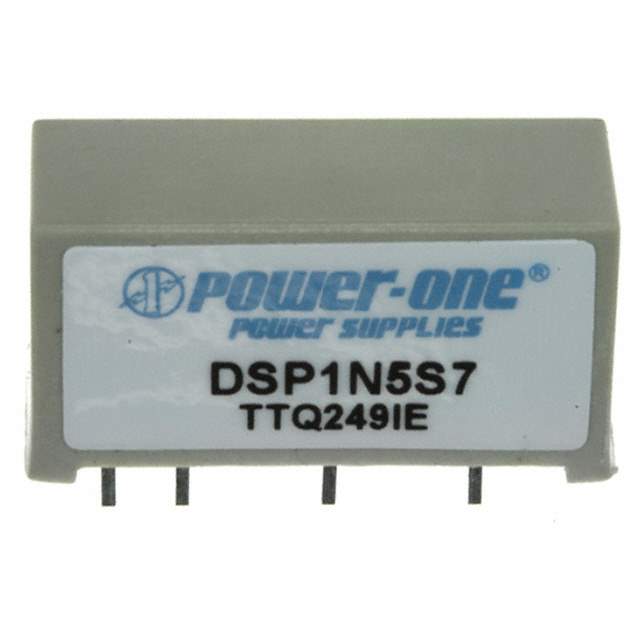

DSP1N5S7 Real Image
Same model may have multiple batches, images only for reference.

DSP1N5S7

Part No DSP1N5S7
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 7V 1W / Isolated Module DC DC Converter 1 Output 7V 140mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series DSP1 (1W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 7V
Current - Output (Max) 140mA
Power (Watts) 1 W
Voltage - Isolation 700 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 70%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.77" L x 0.27" W x 0.40" H (19.6mm x 6.9mm x 10.2mm)
Standard Package 500
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1341348-DSP1N5S7
Ultra Librarian 3D Model Ultra Librarian DSP1N5S7 CAD Model

Description

The DSP1N5S7 is an isolated module designed for DC-DC conversion in ITE (Commercial) applications.

  • Maximum Output Current: 140mA
  • Input Voltage: 4.5V to 5.5V
  • Output Voltage: 7V
  • Packaging: Bulk
  • Dimension: 0.77" L x 0.27" W x 0.40" H (19.6mm x 6.9mm x 10.2mm)
The DSP1N5S7 is a compact and reliable solution for power supply design.
