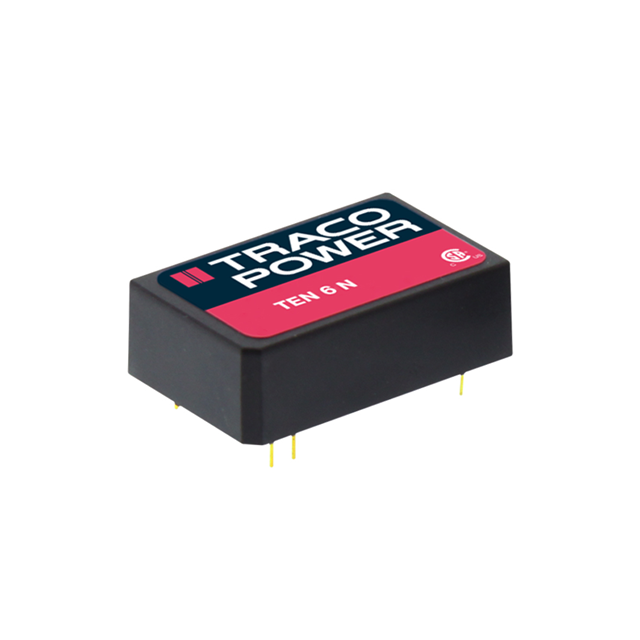

Same model may have multiple batches, images only for reference.

TEN 6-4822N

Name: TEN 6-4822N
Brand: Traco Power
SKU: 1335823
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 6-4822N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 36V - 75V Input
Datasheet	TEN 6-4822N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	250mA, 250mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	TEN 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2266-TEN 6-4822N,TEN 6-4822N-ND,TEN6-4822N
Standard Package	10
Win Source Part Number	1335823-TEN 6-4822N
Ultra Librarian 3D Model	Ultra Librarian TEN 6-4822N CAD Model

Alternative Products

Description

The Traco Power TEN 6-4822N is a DC-DC converter module with two outputs.

Power Output: 6 W
Applications: ITE applications
Input Voltage: 36V to 75V
Output Voltages: 12V and -12V
Type: Isolated module
Voltage Isolation: 1.5 kV
Features: OCP and SCP
Package: 24-DIP module with 8 leads
Efficiency: 84%
Operating Temperature: -40°C to 85°C with derating
ROHS Status: ROHS3 compliant
REACH Status: Unaffected
