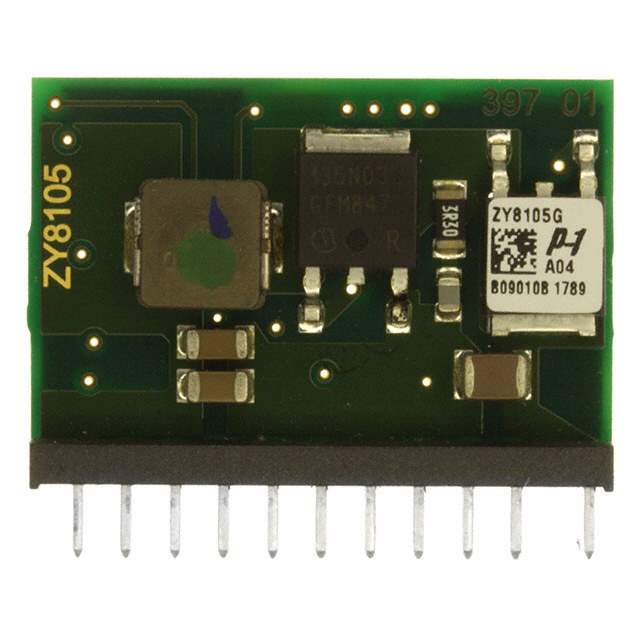

ZY8105G-R1 Real Image
Same model may have multiple batches, images only for reference.

ZY8105G-R1

Part No ZY8105G-R1
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.5-5.5V / Module DC-DC 1-OUT 0.5V to 5.5V 5A 11-Pin SIP Tray
Datasheet
ZY8105G-R1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Bel Power Solutions
Series Intelligent POL Converter
Packaging Tray
Part Status Obsolete(EOL)
Type Non-Isolated PoL Module, Digital
Number of Outputs 1
Input Voltage MIN 8V
Voltage Input MAX 14V
Voltage - Output 1 0.5 ~ 5.5 V
Current - Output (Maximum) 5A
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 92.4%
Mounting Style Through Hole
Package 11-SIP Module
Dimension 1.20" L x 0.26" W x 0.84" H (30.5mm x 6.7mm x 21.4mm)
Win Source Part Number 800453-ZY8105G-R1
Popularity Medium
Supply and Demand Status Balance
Family Name ZY8105
Introduction Date April 28, 2014
Country of Origin Slovakia(SlovakRepublic)
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ZY8105G-R1 CAD Model

Description

The ZY8105G-R1 by Bel Power Solutions is a non-isolated POL module that is designed to be used in various electronic applications.

  • Product Type: Non-isolated POL module
  • Output Voltage: 0.5 ~ 5.5V
  • Output Current: 5A (Maximum)
  • Efficiency: 92.4%
  • Package: 11-SIP module
  • Dimensions: 1.20" L x 0.26" W x 0.84" H (30.5mm x 6.7mm x 21.4mm)
  • Mounting: Through-hole
  • Operating Temperature: 0°C to 70°C
  • Application: ITE (Commercial)
