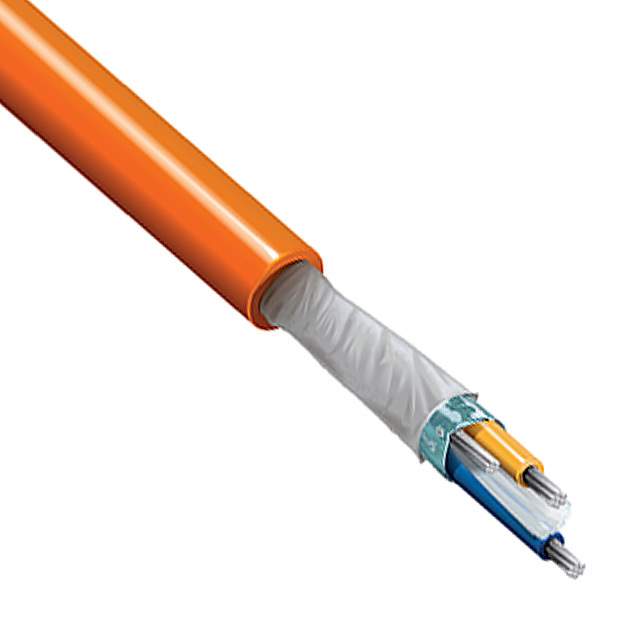

3076F 003250 Real Image
Same model may have multiple batches, images only for reference.

3076F 003250

Part No 3076F 003250
Manufacturer Belden Inc.
Catalog Multiple Conductor Cables
Description CABLE 2 COND 18AWG SHLD 250' / Shielded Multi-Conductor Cable Tape Polyolefin 2Conductors 20AWG 7.11mm 300VAC Orange Polyvinyl Chloride 76m Reel
Datasheet
3076F 003250 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Series DataBus
Cable Type Multi-Conductor
Number of Conductors 2 (1 Pair)
Wire Gauge 18 AWG
Conductor Strand 7/26
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.280" (7.11mm)
Shield Type Foil
Length 250.0' (76.2m)
Jacket Color Orange
Features Drain Wire
Operating Temperature Range -40°C ~ 105°C
Conductor Insulation Polyolefin (PO)
Shield Material Aluminum
Shield Coverage 100%
Win Source Part Number 774295-3076F 003250
Popularity Medium
Supply and Demand Status Balance
Family Name 3076F
Introduction Date October 05, 2006
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 3076F 003250 CAD Model

Description

The Belden Inc. electronic component with part number 774295-3076F 003250 is a medium popularity product.

  • Series: DataBus
  • Cable Length: 250.0' (76.2m)
  • Conductor Material: copper, tinned
  • Shield Material: aluminum
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Diameter: 0.280" (7.11mm)
  • Conductor Insulation: Polyolefin (PO)
  • Shield Type: foil
  • Color: orange
  • Shield Coverage: 100%
  • ECCN: EAR99
  • Estimated EOL Date: 2026
