Same model may have multiple batches, images only for reference.

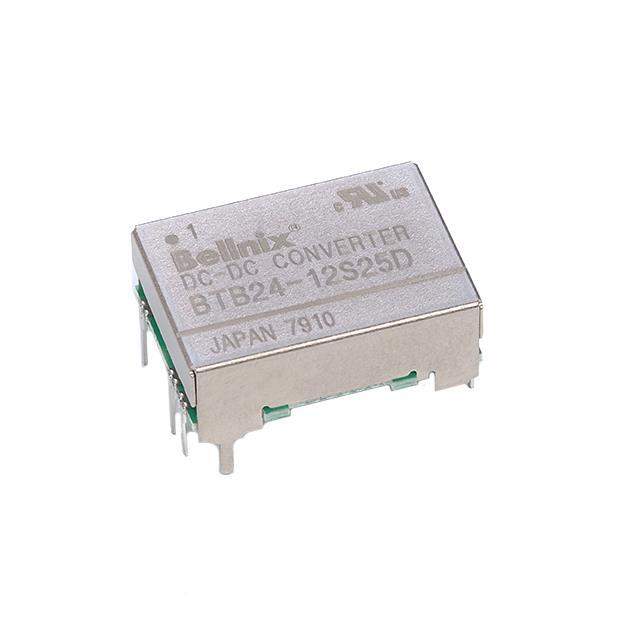

BTB24-12W12S Real Image
Same model may have multiple batches, images only for reference.

BTB24-12W12S

Part No BTB24-12W12S
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
Datasheet
BTB24-12W12S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bellnix Co., Ltd.
Series BTB (3W)
Package Bulk
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Surface Mount
Package / Case 10-SMD Module, 7 Leads
Size / Dimension 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm)
Approval Agency cUL, UL
Base Product Number BTB24
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337670-BTB24-12W12S
Ultra Librarian 3D Model Ultra Librarian BTB24-12W12S CAD Model

Description

The Bellnix Co., Ltd. BTB24-12W12S is a DC-DC converter with a power output of 3W.

  • Type: Isolated Module
  • Outputs: 2
  • Voltage Isolation: 500V
  • Features: Adjustable Output, Remote On/Off
  • Length: 0.91 inches (23.2mm)
  • Width: 0.65 inches (16.6mm)
  • Height: 0.33 inches (8.5mm)
  • Temperature Range: -40°C to 85°C with derating
  • Mounting Type: Surface Mount
  • Application: ITE (commercial)
  • Efficiency: 81%
  • ECCN: EAR99 compliant
  • MSL Level: 1
  • HTSUS: 8504.40.9580
  • Other Part Number: BTB24-12W12S
