Same model may have multiple batches, images only for reference.

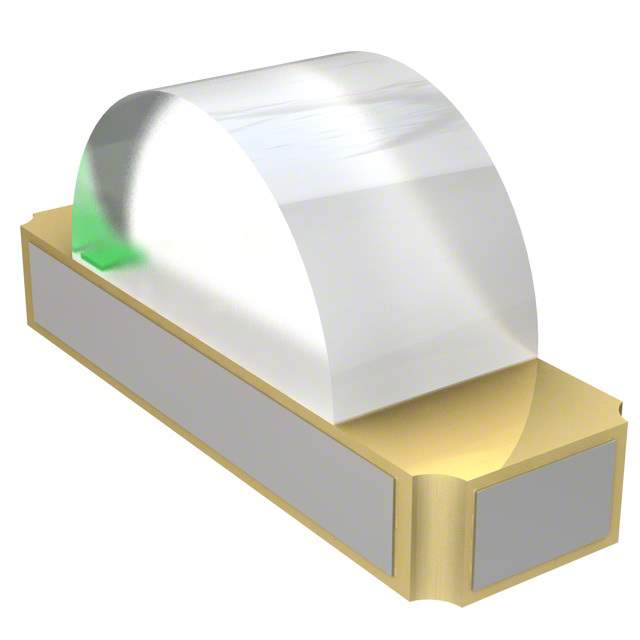

SM1204SBWC Real Image
Same model may have multiple batches, images only for reference.

SM1204SBWC

Part No SM1204SBWC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR 1204 SMD R/A / Blue 470nm LED Indication - Discrete 3.3V 1204 (3210 Metric)
Datasheet
SM1204SBWC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 90mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 3.3V
Current - Test 20mA
Viewing Angle 110°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 470nm
Wavelength - Peak 468nm
Package / Case 1204 (3210 Metric)
Supplier Device Package 1204
Dimension 3.20mm L x 1.00mm W
Height (Max) 1.00mm
Base Product Number SM1204
Other Names 492-1234-1,492-1234-2,492-1234-6
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242342-SM1204SBWC
Ultra Librarian 3D Model Ultra Librarian SM1204SBWC CAD Model

Description

The SM1204SBWC is a blue LED indication product designed for discrete use in optoelectronics.

  • Package: Tape and Reel
  • Standard Package: 3,000
  • Viewing Angle: 110°
  • Millicandela Rating: 90mcd
  • Voltage-Forward (Vf): 3.3V
  • Current Test: 20mA
  • MSL Level: 4 (72 hours)
  • Supplier Device Package: 1204
