Same model may have multiple batches, images only for reference.

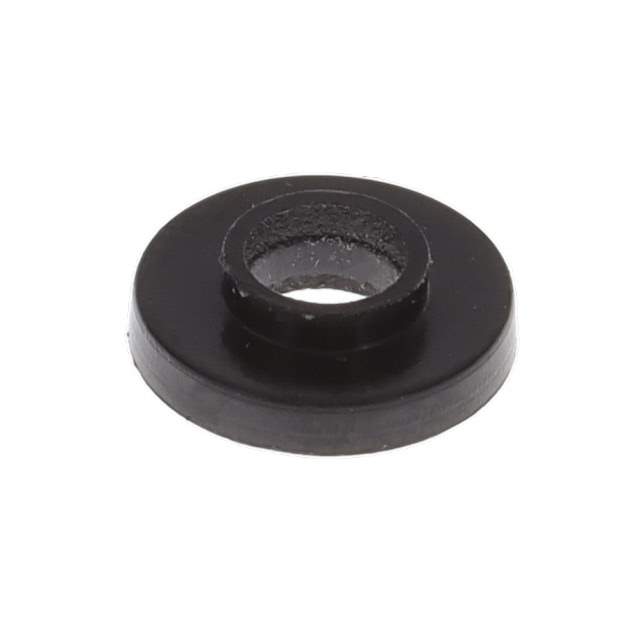

SW-031-145 Real Image
Same model may have multiple batches, images only for reference.

SW-031-145

Part No SW-031-145
Manufacturer Bivar Inc.
Catalog Washers - Bushing, Shoulder
Datasheet
SW-031-145 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Washers - Bushing, Shoulder
Mfr Bivar Inc.
Series SW
Package Bag
Thread/Screw/Hole Size #4
Diameter - Inside 0.118" (3.00mm)
Diameter - Outside 0.280" (7.11mm)
Diameter - Shoulder 0.145" (3.68mm)
Thickness - Overall 0.079" (2.00mm)
Length - Below Head 0.031" (0.79mm) 1/32"
Material Polyphenylene Sulfide, Glass Filled
Base Product Number SW-031
Other Names SW-031-145,492-2529
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 3926.90.4590
Win Source Part Number 1275029-SW-031-145
Ultra Librarian 3D Model Ultra Librarian SW-031-145 CAD Model

Description

The SW series washer from Bivar Inc. is a reliable hardware accessory for fastening and shoulder applications.

  • Material: Polyphenylene sulfide, glass-filled material
  • Overall Thickness: 0.079” (2.00mm)
  • Outside Diameter: 0.280” (7.11mm)
  • Inside Diameter: 0.118” (3.00mm)
  • Length Below Head: 0.031” (0.79mm) 1/32”
  • Thread/Screw/Hole Size: #4
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • HTSUS: 3926.90.4590
