Same model may have multiple batches, images only for reference.

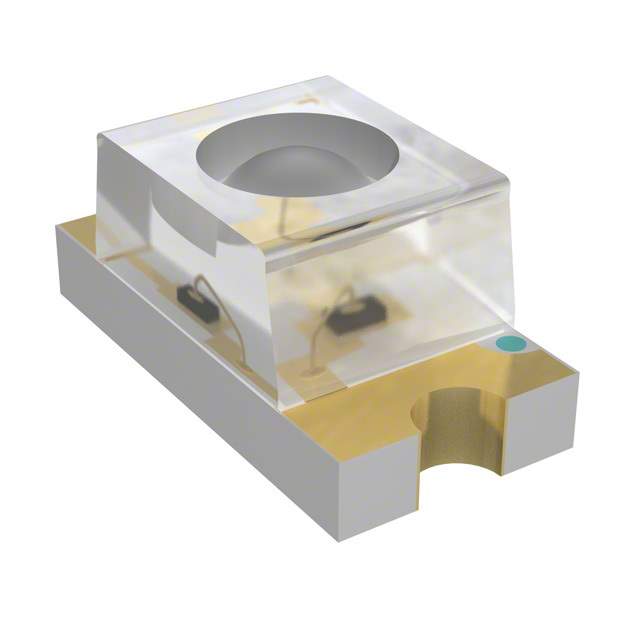

SM1206UV-405-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206UV-405-IL

Part No SM1206UV-405-IL
Manufacturer Bivar Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 408NM 25MA 1206  /  Ultraviolet (UV) Emitter 400nm ~ 405nm 3.4V 25mA 30° 1206 (3216 Metric)
Datasheet
SM1206UV-405-IL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Bivar Inc.
Package Tape & Reel
Type Ultraviolet (UV)
Current - DC Forward (If) (Max) 25mA
Wavelength 400nm ~ 405nm
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -30°C ~ 80°C (TA)
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Base Product Number SM1206
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 492-1535-2,492-1535-1,SM1206UV-405-IL-T/R-ND,492-1535-6,SM1206UV-405-IL-ND,SM1206UV-405-IL-T/R,SM1206UV405IL,Q3647927
Standard Package 3,000
Win Source Part Number 1177109-SM1206UV-405-IL
Ultra Librarian 3D Model Ultra Librarian SM1206UV-405-IL CAD Model

Description

The SM1206UV-405-IL ultraviolet (UV) LED emitter by Bivar Inc. emits UV light with a wavelength of 400nm to 405nm.

  • It has a viewing angle of 30 degrees and a voltage-forward (Vf) of 3.4V.
  • The radiant intensity (Ie) is not specified, but it can handle a maximum current of 25mA.
  • The LED emitter comes in a 1206 (3216 Metric) package and is compatible with surface mount technology (SMT).
  • It is available in a standard package of 3,000 pieces and comes in a tape and reel package.
  • It can operate in a temperature range of -30°C to 80°C (TA) and has an ECCN of EAR99.
