Same model may have multiple batches, images only for reference.

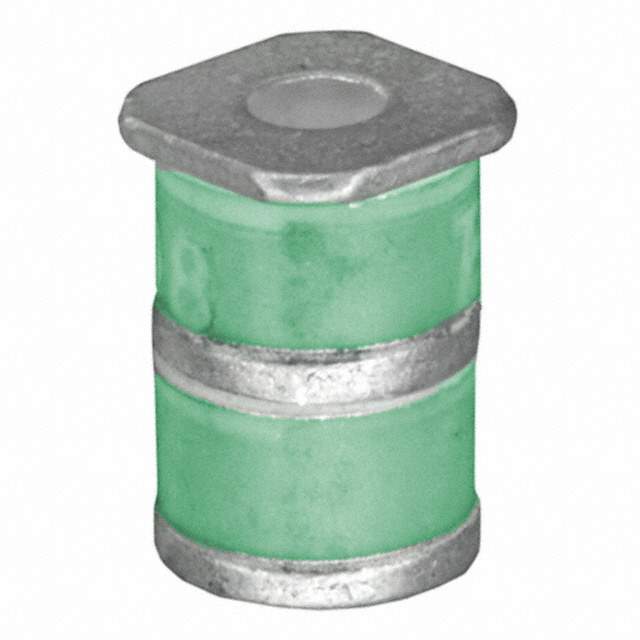

2036-07-SM-RPLF Real Image
Same model may have multiple batches, images only for reference.

2036-07-SM-RPLF

Part No 2036-07-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 75V 10KA 3 POLE SMD / Gas Discharge Tube 75 V 10000A (10kA) ±20% 3 Pole Surface Mount
Datasheet
2036-07-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series Mini-TRIGARD™ 2036-SM
Package Tape & Reel
Voltage - DC Spark Over (Nom) 75 V
Impulse Discharge Current (8/20µs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting SMD (SMT)
Package / Case 3-SMD Cylinder Square End
Base Product Number 2036
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 2036-07-SM-RPLFCT,203607SMRPLF,2036-07-SM-RPLF-ND,2036-07-SM-RPLFTR,2036-07-SM-RPLFDKR
Standard Package 1,000
Win Source Part Number 1150268-2036-07-SM-RPLF
Ultra Librarian 3D Model Ultra Librarian 2036-07-SM-RPLF CAD Model

Description

The Bourns Inc. 2036-SM is a gas discharge tube arrester (GDT) designed to protect electronic circuits from high voltage surges.

  • Type: Gas Discharge Tube (GDT)
  • Mounting: Surface-mount device (SMD)
  • Tolerance: ±20%
  • Breakdown Voltage: 75V
  • Poles: 3
  • Impulse Discharge Current: 10kA
  • Series: Mini-TRIGARD™
  • Package: 3-SMD cylinder square end
  • Packaging: Tape and reel
